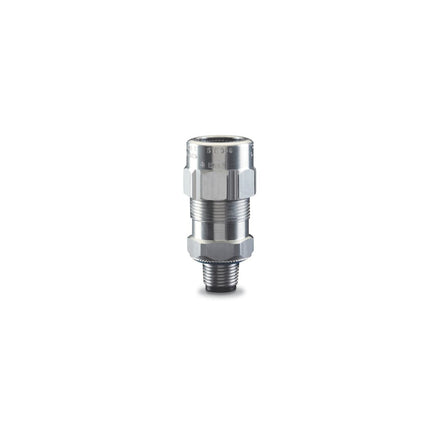

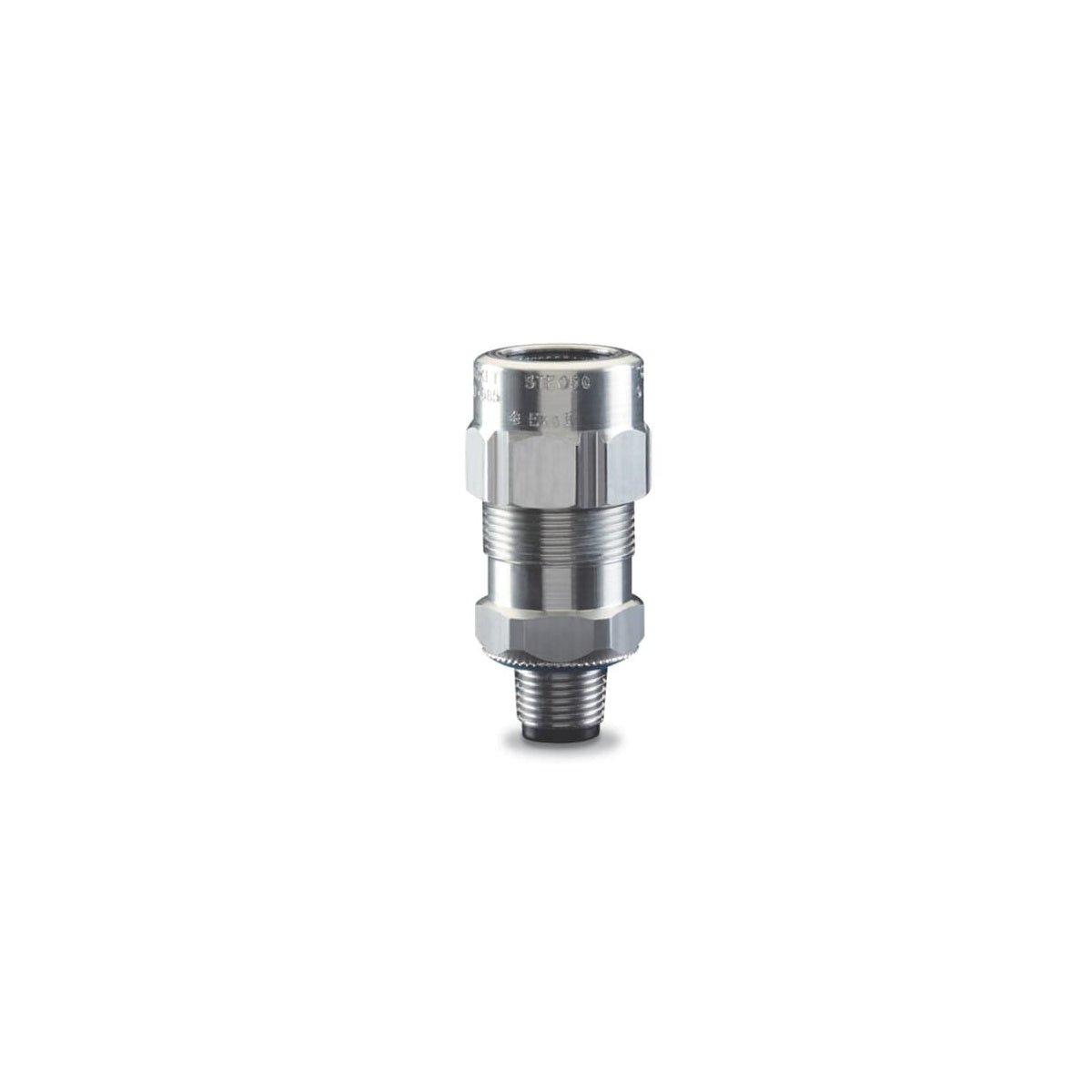

THOMAS & BETTS STE250 AL EXT FTG- TECK CABLE- 2 1/2 IN
SKU: #404726
Part: #STE250
UPC: 786210996851
THOMAS & BETTS STE250 AL EXT FTG- TECK CABLE- 2 1/2 IN
SKU: #404726
Part: #STE250
UPC: 786210996851
Description
THOMAS & BETTS STE250 AL EXT FTG- TECK CABLE- 2 1/2 IN Cable Fitting
The Thomas & Betts STE250 is a Star Teck Extreme aluminum jacketed cable fitting designed for use with Teck and ACWU cables. It features a hub size of 2-1/2 inches and accommodates cable jackets ranging from 2.265 to 2.840 inches in diameter. This fitting is suitable for electrical distributors and switchgear suppliers requiring reliable, durable fittings for wire and cable installations in industrial and hazardous locations.
Specifications
- Manufacturer: Thomas & Betts
- Manufacturer Part Number: STE250
- Material: Aluminum
- Color: Silver
- Hub Size: 2-1/2 inches (NPT)
- Range Over Jacket Diameter: 2.265 – 2.840 inches
- Product Weight: 18.0 lbs
- UPC: 786210996851
Features
- Designed to accommodate a broad range of cable diameters minimizing cable-to-fitting mismatch
- Constructed with aluminum body and components for corrosion resistance and durability
- Certified Type HLA CSA Class II, Divisions 1 and 2, Groups E, F, and G; Class III and Enclosure 1/2 to 2 Type 4, 4X, and 6P; 2-1/2 to 4 Type 4 and 4X
- Suitable for Class I Division 1 and 2 hazardous locations when installed with certified Class I sealing fittings
- UL listed for metal-clad cable, Type 6P; STE250 is UL listed with cables from 0.592 to 0.693 inches over jacket (STE050-DATA reference)
- Includes elastomer sealing ring, grounding ring, and removable armor stop for effective cable sealing and grounding
