THOMAS & BETTS STE100 AL EXT FITTING- TECK CABLE- 1 IN
SKU: #404725
Part: #STE100
UPC: 786210822747
THOMAS & BETTS STE100 AL EXT FITTING- TECK CABLE- 1 IN
SKU: #404725
Part: #STE100
UPC: 786210822747
Description

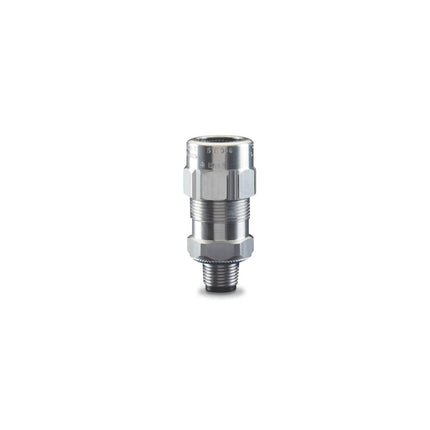

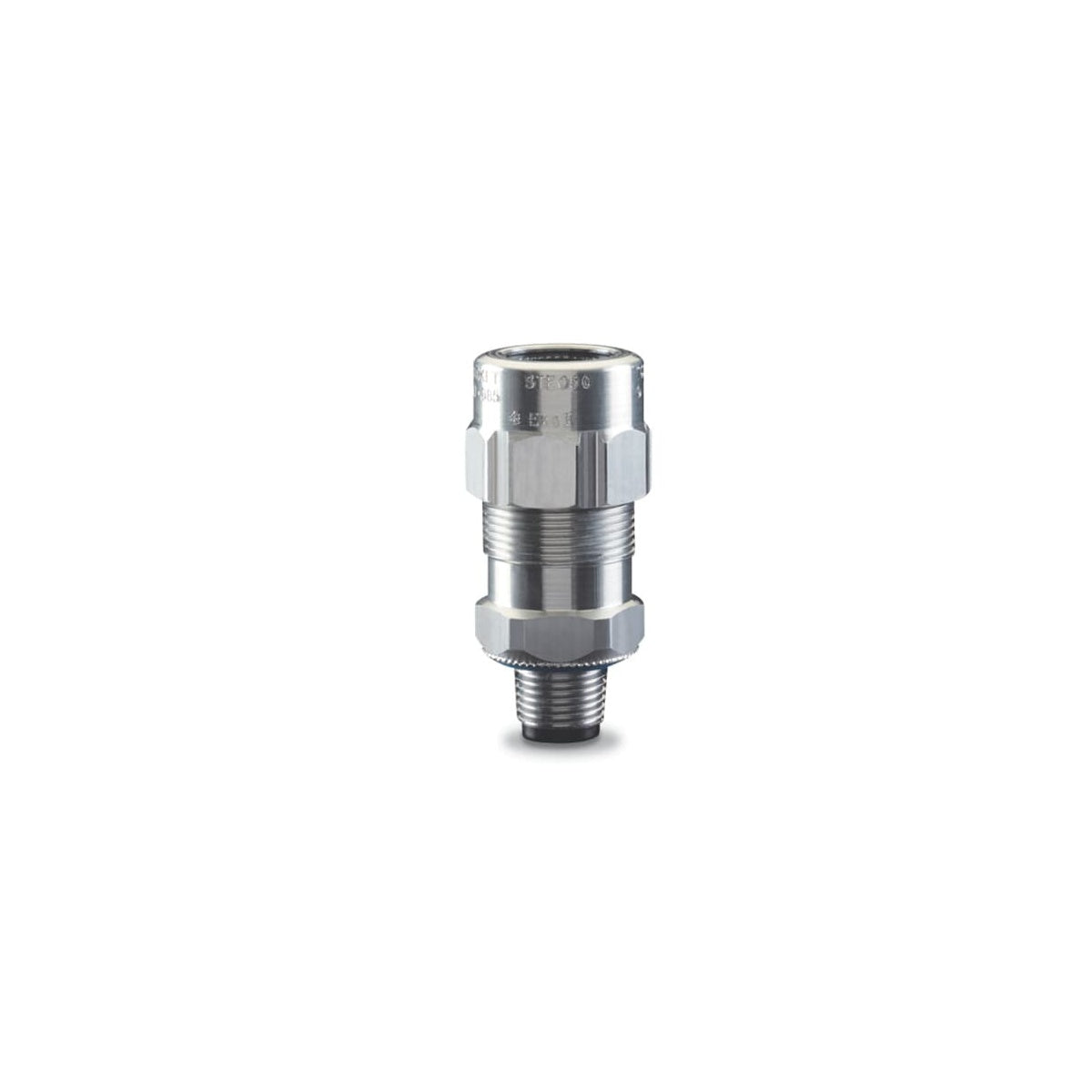

THOMAS & BETTS STE100 Aluminum Teck Cable Fitting
The THOMAS & BETTS STE100 is a Star Teck Extreme aluminum jacketed cable fitting designed for terminating Teck and ACWU cables. With a 1-inch hub size, it accommodates cable jackets ranging from 0.950 to 1.375 inches in diameter. This fitting is suitable for electrical distributors and switchgear suppliers requiring reliable, durable connections for wire and cable installations in industrial and hazardous locations.
Specifications
- Manufacturer Part #: STE100
- Material: Aluminum
- Color: Silver
- Hub Size: 1 inch (NPT)
- Range Over Jacket Diameter: 0.950 - 1.375 inches
- Product Weight: 4.8 lbs
- UPC: 786210822747
Features
- Designed to accommodate a broad range of cable sizes with overlapping hub ranges to minimize mismatched fittings
- Constructed from aluminum for corrosion resistance and durability
- Certified for Class II, Divisions 1 and 2, Groups E, F, and G hazardous locations
- UL listed for metal-clad cable, Type 6P
- Suitable for use in combination with certified Class I sealing fittings for Class I Division 1 and 2 locations
