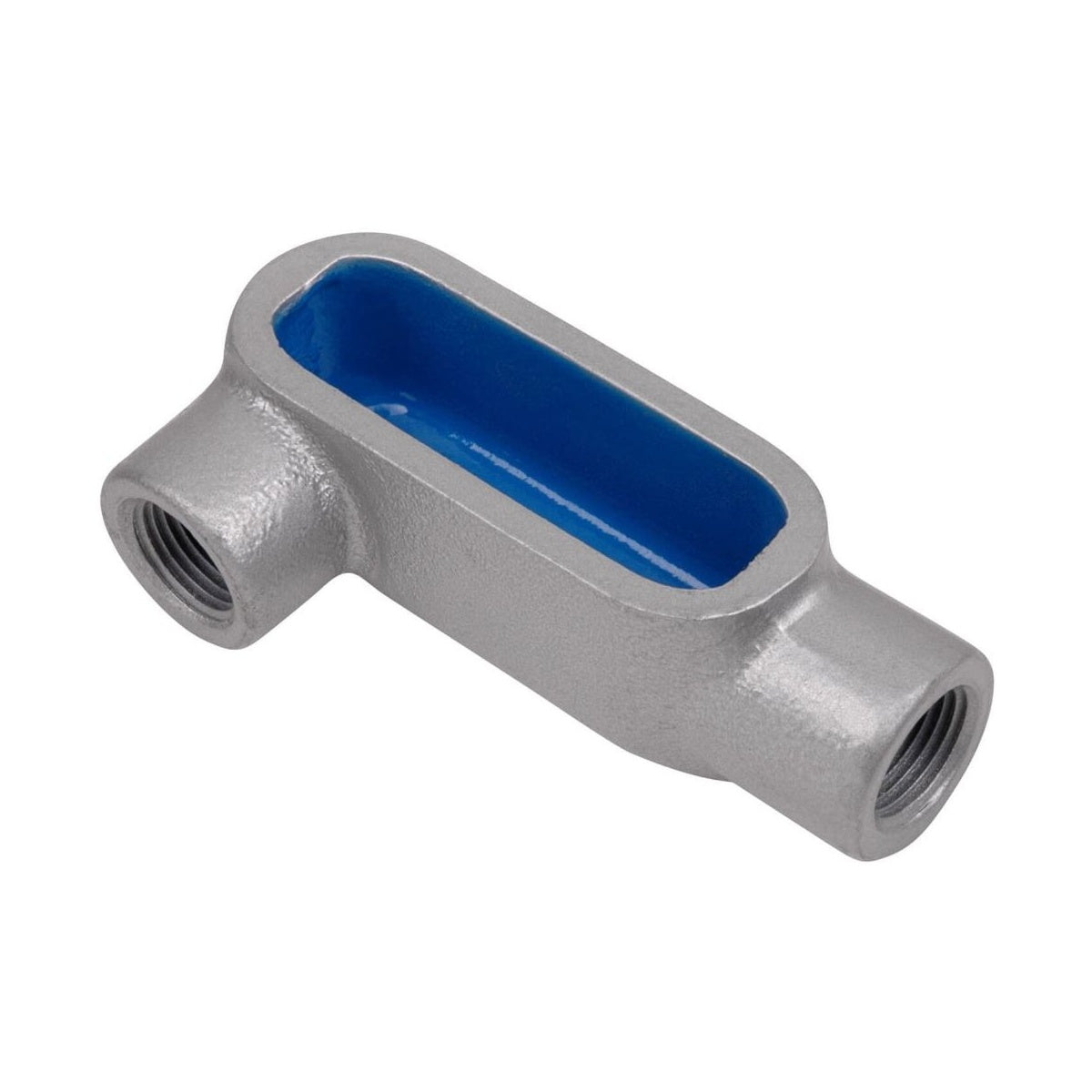

THOMAS & BETTS LR777-G COND BODY LRSHAPE FRM7 2-1/2IN GRY
SKU: #408347
Part: #LR777-G
UPC: 704508394356
THOMAS & BETTS LR777-G COND BODY LRSHAPE FRM7 2-1/2IN GRY
SKU: #408347
Part: #LR777-G
UPC: 704508394356
Description
THOMAS & BETTS LR777-G COND BODY LRSHAPE FRM7 2-1/2IN GRY Conduit Body
The THOMAS & BETTS LR777-G is a Form 7 conduit body designed for use as pull outlets for conductors being installed. This conduit body, manufactured by Thomas & Betts, is constructed from iron and coated with PVC for enhanced corrosion resistance. It is suitable for electrical distributors and lighting solutions requiring durable wire and cable protection and routing. The LR shape and 2-1/2 inch hub size provide effective conduit system access for pulling, splicing, mounting, and maintenance in rigid cable protection systems.
Specifications
- Manufacturer Part #: LR777-G
- Material: Iron
- Finish: PVC Coated
- Color: Dark Gray
- Form: Form 7
- Hub Size: 2-1/2 in, 63 mm
- Length: 10.55 in
- Height: 3.65 in
- Width: 5.8 in
- Product Weight: 11.31 lbs
- Application: Act As Pull Outlets for Conductors Being Installed
Features
- Double corrosion protection with PVC coating
- LR shape conduit body for easy access to conductors
- Designed for use in rigid cable protection systems
- Suitable for wire pulling, splicing, mounting, and maintenance
- Dark gray standard color with durable finish
