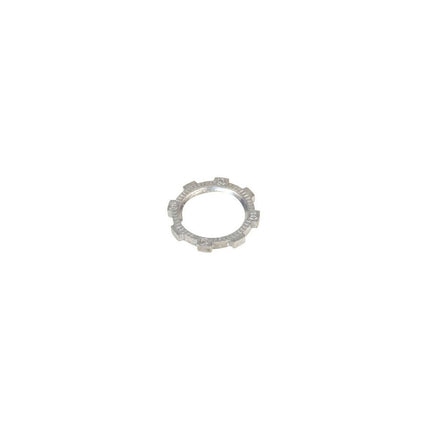

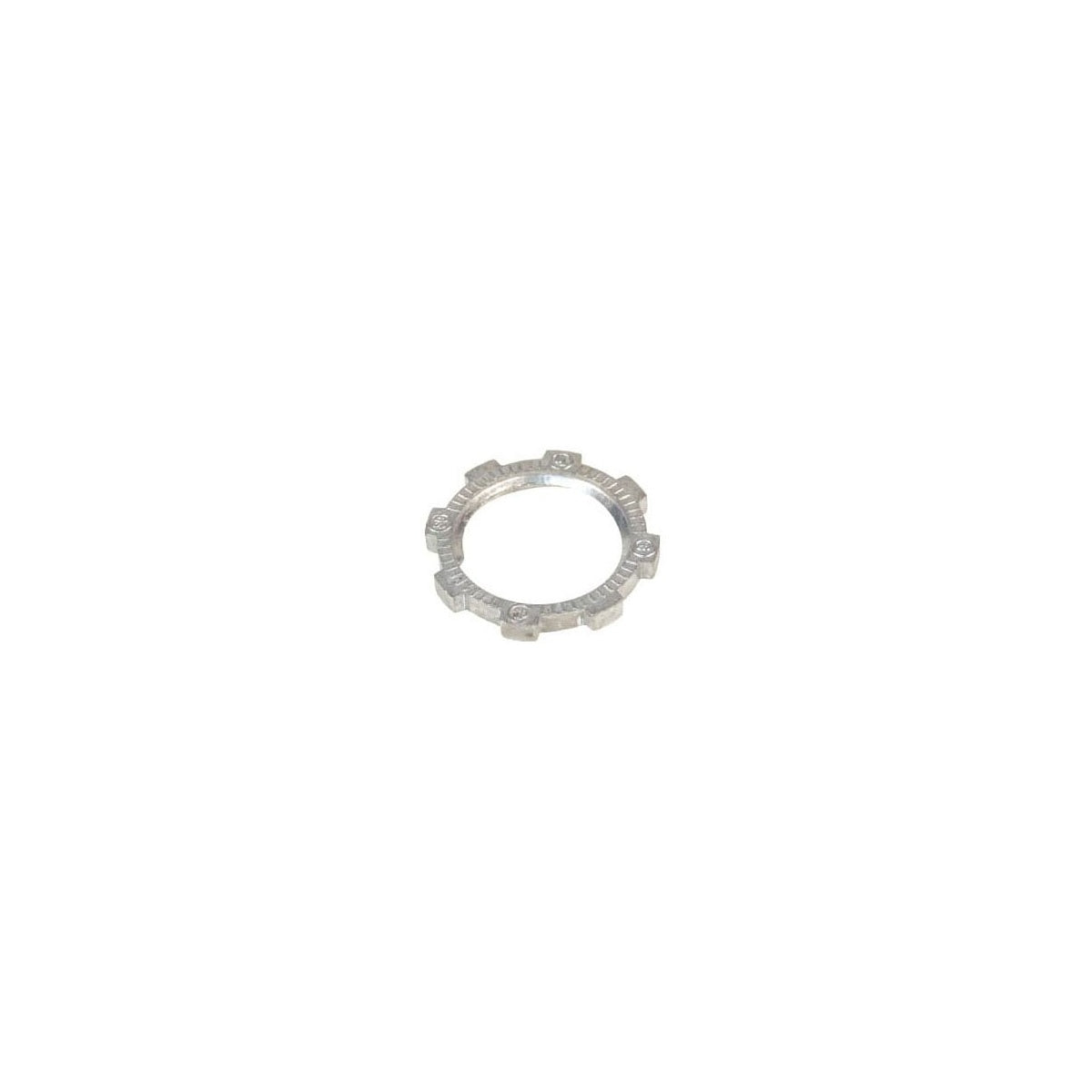

THOMAS & BETTS LN206 2 Inch Locknut for Rigid/IMC Conduit

The THOMAS & BETTS LN206 is a 2-inch locknut designed for secure fastening in rigid and intermediate metal conduit (IMC) applications. Manufactured from die-cast zinc, this locknut provides reliable mechanical connection and grounding in electrical installations. It is suitable for use by electrical distributors and switchgear suppliers requiring durable conduit fittings for wire and cable management in commercial and industrial lighting solutions.

Specifications

• Conduit Size: 2 Inches
• Material: Die Cast Zinc
• Width (Dimension B): 3.175 Inches
• Thickness (Dimension A): 0.187 Inches
• Thread Size: 2-11 1/2 National Pipe Straight (NPS)
• Standards: UL E23018 Certified
• Country of Origin: India
• Product Weight: 16 lbs
• RoHS Compliant: Yes, following EU Directive 2011/65/EU and Amendment 2015/863
• Package Quantity: 50 each per unit

Features

• Designed specifically for rigid and IMC conduit applications
• Die-cast zinc construction ensures corrosion resistance and mechanical strength
• National Pipe Straight thread standard for compatibility with industry conduit systems
• Certified to UL standards for safety and reliability
• RoHS compliant, meeting environmental and safety regulations
• Suitable for use in commercial fittings and wire management systems

Downloads & Links

• Spec Sheet
• Spec Sheet
