THOMAS & BETTS J2D BRZ GRD CLAMP (BURIAL)
SKU: #404993
Part: #J2D
UPC: 783786045204
THOMAS & BETTS J2D BRZ GRD CLAMP (BURIAL)
SKU: #404993
Part: #J2D
UPC: 783786045204
Description
THOMAS & BETTS J2D BRZ GRD CLAMP (BURIAL) Ground Clamp

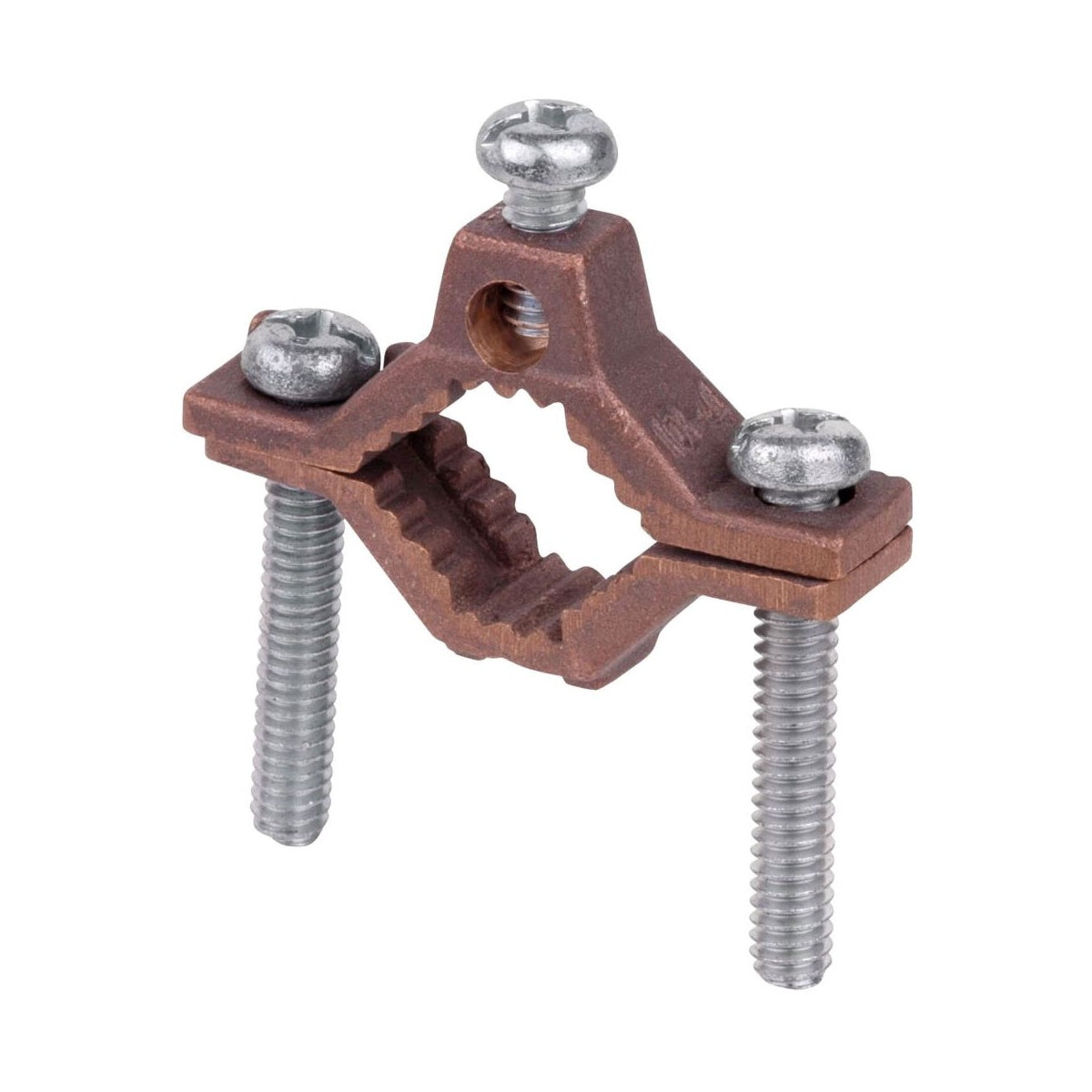

The Thomas & Betts J2D Bronze Ground Clamp is designed for securely connecting grounding conductors to water pipes or copper tubing in electrical distribution and grounding applications. This clamp is suitable for use by electrical distributors and switchgear suppliers requiring reliable grounding solutions with durable materials for direct burial installations.
Specifications
- Manufacturer: Thomas & Betts
- Manufacturer Part #: J2D
- Conductor Material: Bronze
- Insulation: No
- Product Weight: 19.0000 lbs
- UPC: 783786045204
- Water Pipe Size: 1¼ to 2 inches
- Conductor Range: #2 stranded to #10 stranded
Features
- Cast of high-strength, highly conductive bronze alloy
- Designed for direct burial use, UL approved
- Screws plated for corrosion resistance
- Connects copper ground wire to water pipe or copper tubing
