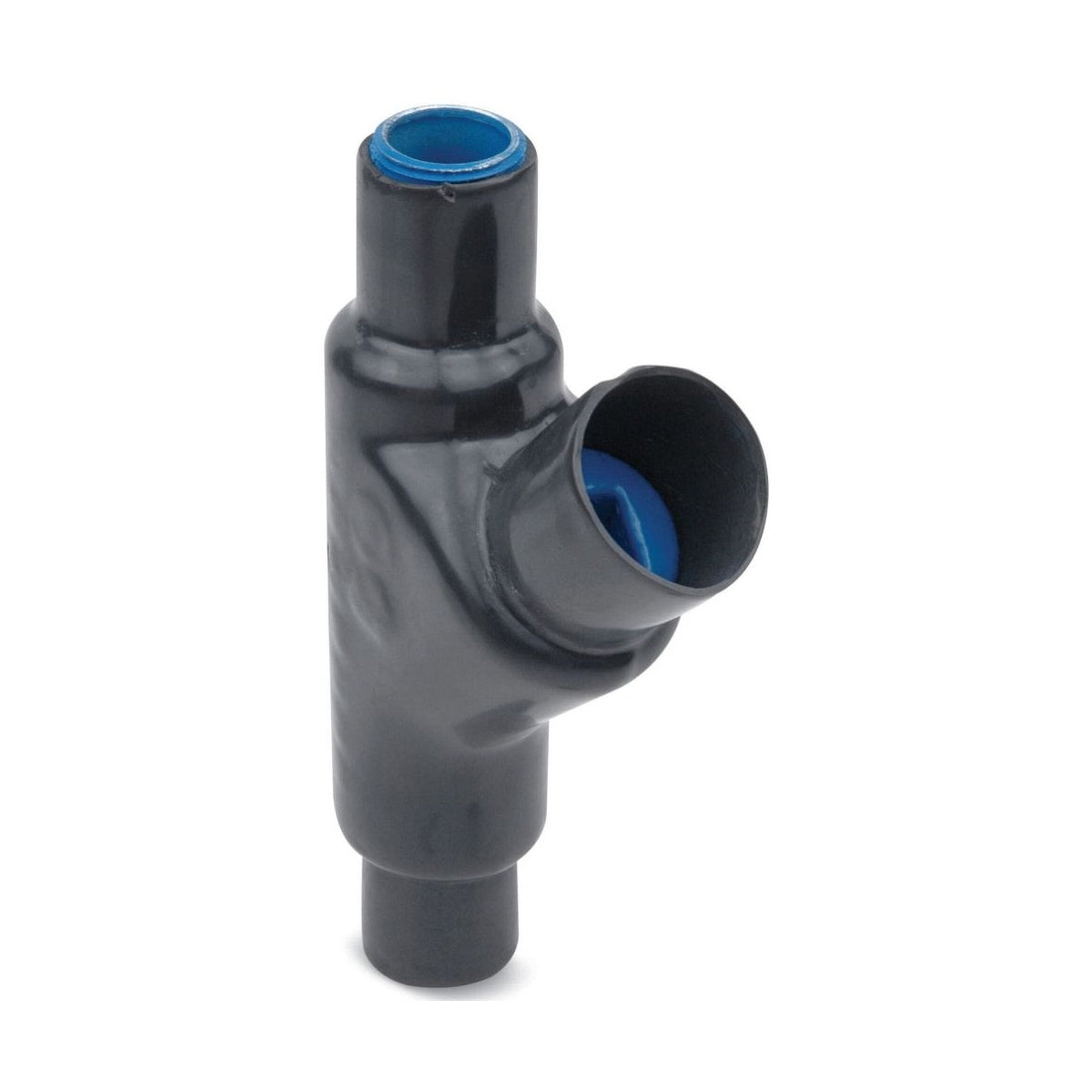

THOMAS & BETTS EYS36-G Conduit Sealing Fitting for Hazardous Locations

The THOMAS & BETTS EYS36-G is a PVC double-coated conduit sealing fitting designed for use in hazardous locations. It restricts the passage of gases, vapors, and flames at atmospheric pressure and normal ambient temperatures, making it suitable for electrical distributors and switchgear suppliers requiring reliable sealing solutions. This fitting is intended for vertical installation and features a male and female hub configuration with a 1-inch (27 mm) hub size.

Specifications

• Material: Iron (Ductile Iron)
• Color: Gray
• Finish: PVC Coated
• Hub Size: 1 in (27 mm)
• Turning Radius: 2.40 in (60.96 mm)
• Product Weight: 2.32 lbs
• Application: Restricts the passage of gases, vapors, and flames at atmospheric pressure and normal ambient temperatures
• Product Type: Hazardous Location Fitting

Features

• Helps prevent pre-compression or ‚Äúpressure piling‚Äù in conduit systems
• Gray iron alloy body construction
• Coated with nominal 0.002" (2 mil) blue urethane on both interior and exterior
• Nominal 0.040" (40 mil) PVC coating bonded to exterior for corrosion resistance
• Explosion-proof and dust-ignition-proof, suitable for Class I, Division 1 and 2 (Groups C, D), Class II, Division 1 (Groups E, F, G), and Class III, Division 1 and 2 environments
