THOMAS & BETTS CPO1000-9-25 HTSHK THIN WALL 2:1 RATIO WHI 25FT
SKU: #408227
Part: #CPO1000-9-25
UPC: 786210875385
THOMAS & BETTS CPO1000-9-25 HTSHK THIN WALL 2:1 RATIO WHI 25FT
SKU: #408227
Part: #CPO1000-9-25
UPC: 786210875385
Description

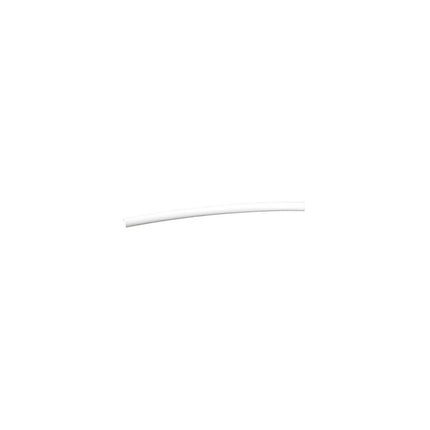

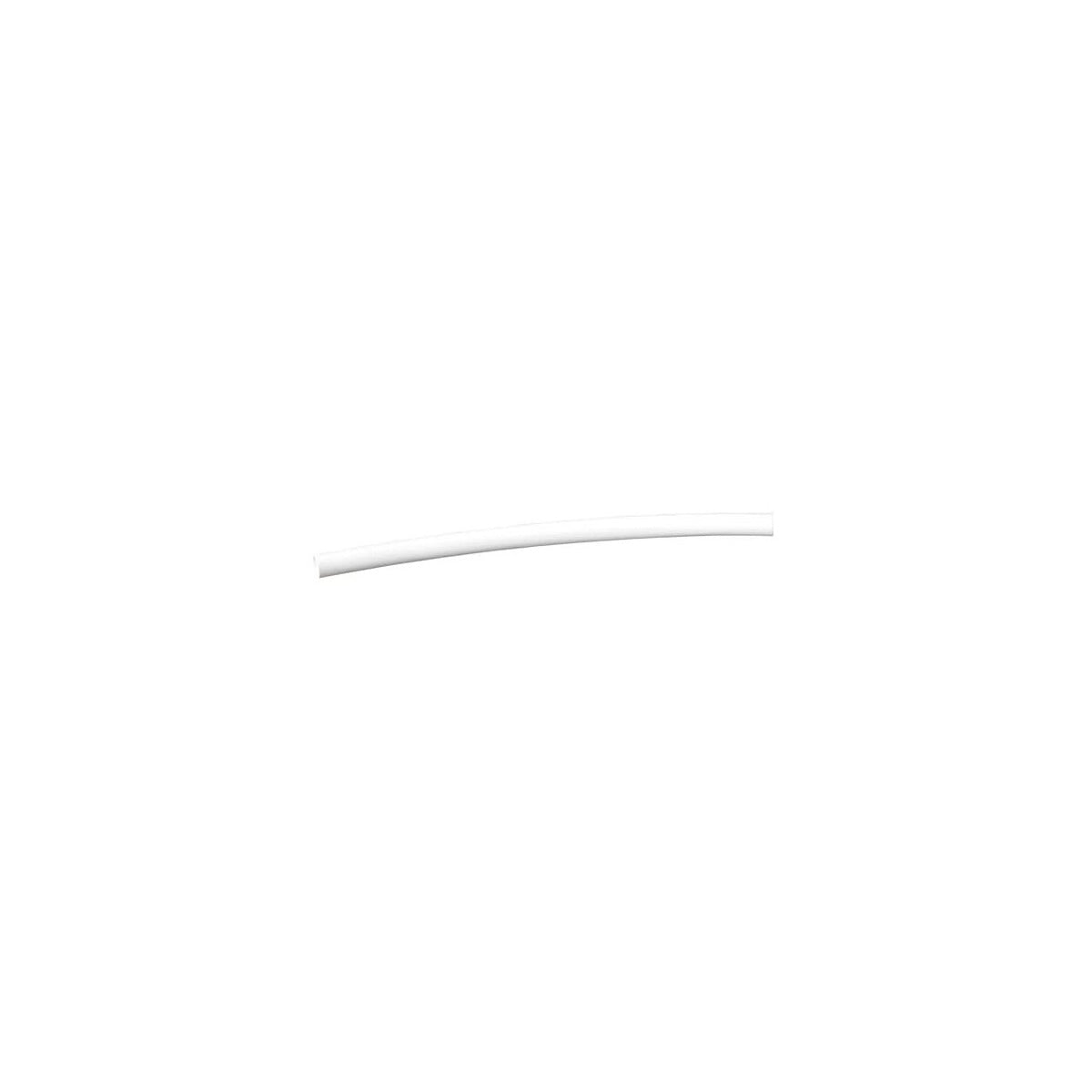

THOMAS & BETTS CPO1000-9-25 Thin-Wall Heat Shrinkable Tubing
The THOMAS & BETTS CPO1000-9-25 is a thin-wall heat shrinkable tubing designed for electrical insulation and protection applications. Manufactured from flame-retardant, cross-linked polyolefin, this tubing offers a 2:1 shrink ratio and operates effectively in temperatures ranging from -55 °C to 135 °C. It is suitable for use in wire and cable management, providing reliable insulation and environmental protection in various electrical and lighting solutions.
Specifications
- Manufacturer: Thomas & Betts
- Manufacturer Part #: CPO1000-9-25
- Color: White
- Length: 25 ft
- Shrink Ratio: 2:1
- Material: Flame-retardant, cross-linked polyolefin
- Operating Temperature: -55 °C to 135 °C
- Nominal Recovered Wall Thickness: 0.04 in
- Minimum Expanded Inner Diameter: 1.00 in
- Maximum Recovered Inner Diameter: 0.50 in
- Weight: 9.7 lbs
- Country of Origin: China
- UPC: 786210875385
Features
- Non-lined thin-wall tubing for versatile electrical insulation
- Flame-retardant and cross-linked polyolefin construction for enhanced safety
- Wide operating temperature range suitable for harsh environments
- Consistent 2:1 shrink ratio for reliable fit over cables and connectors
- White color for easy identification and aesthetic applications
- Available in 25-foot reels for efficient installation and inventory management
