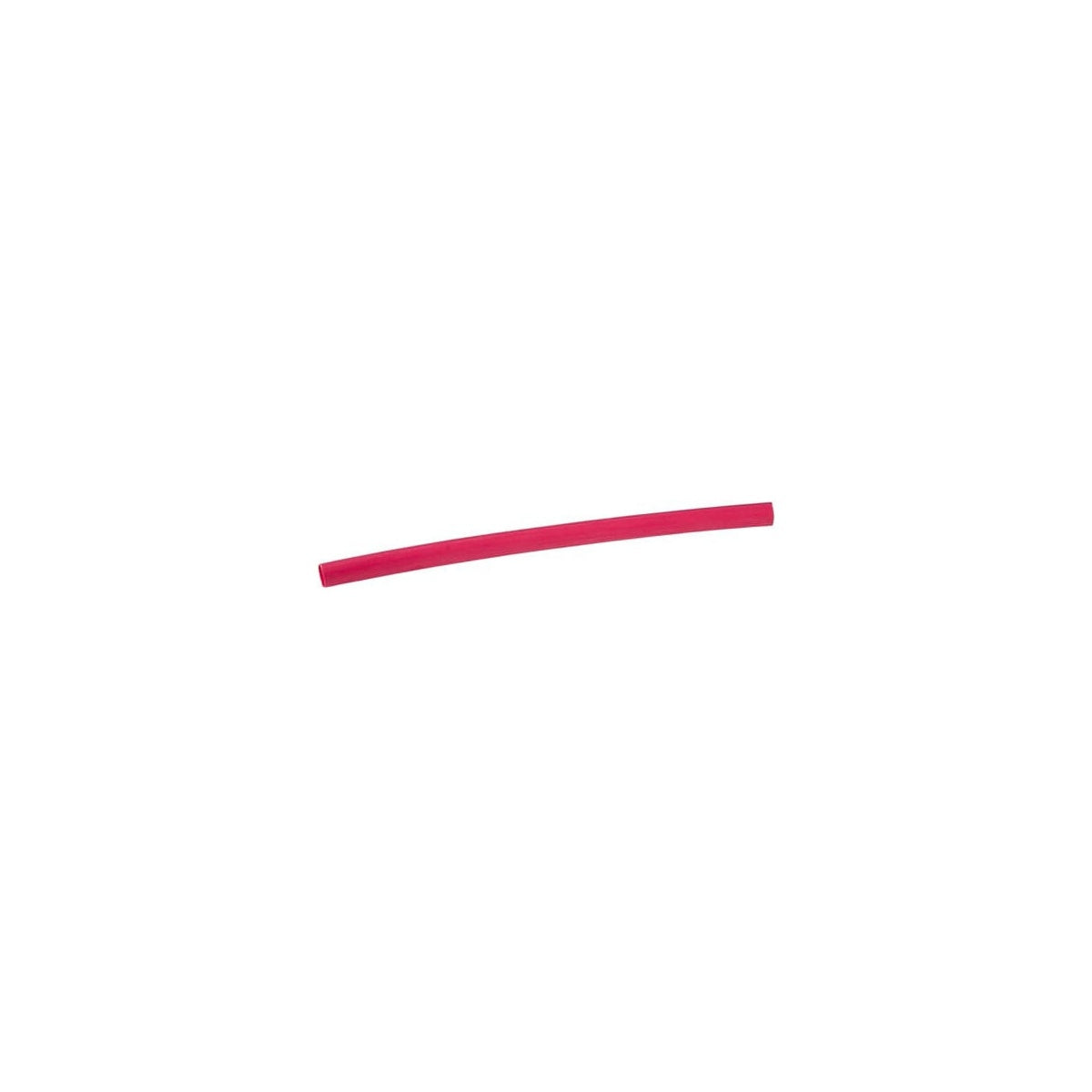

THOMAS & BETTS CPO1000-2-25 Heat Shrinkable Tubing

The THOMAS & BETTS CPO1000-2-25 is a red, thin-wall heat shrinkable tubing designed for electrical insulation and protection applications. Manufactured from flame-retardant, cross-linked polyolefin, this tubing offers a 2:1 shrink ratio and operates reliably in temperatures ranging from -55 °C to 135 °C. It is suitable for wire management and connectivity tasks, making it a practical choice for electrical distributors and switchgear suppliers seeking durable wire and cable protection solutions.

Specifications

• Manufacturer Part #: CPO1000-2-25
• Color: Red
• Length: 25 ft
• Shrink Ratio: 2:1
• Material: Cross-linked polyolefin
• Operating Temperature Range: -55 ¬∞C to 135 ¬∞C
• Nominal Recovered Inner Diameter: 0.50 in
• Nominal Wall Thickness: 0.04 in
• Minimum Expanded Inner Diameter: 1.00 in
• Product Weight: 11.8 lbs
• Country of Origin: China

Features

• Flame-retardant and non-lined thin-wall tubing
• UL recognized and CSA certified (UL file number E137759)
• Suitable for wire and cable insulation in electrical distribution and lighting solutions
• Durable material with continuous temperature resistance
