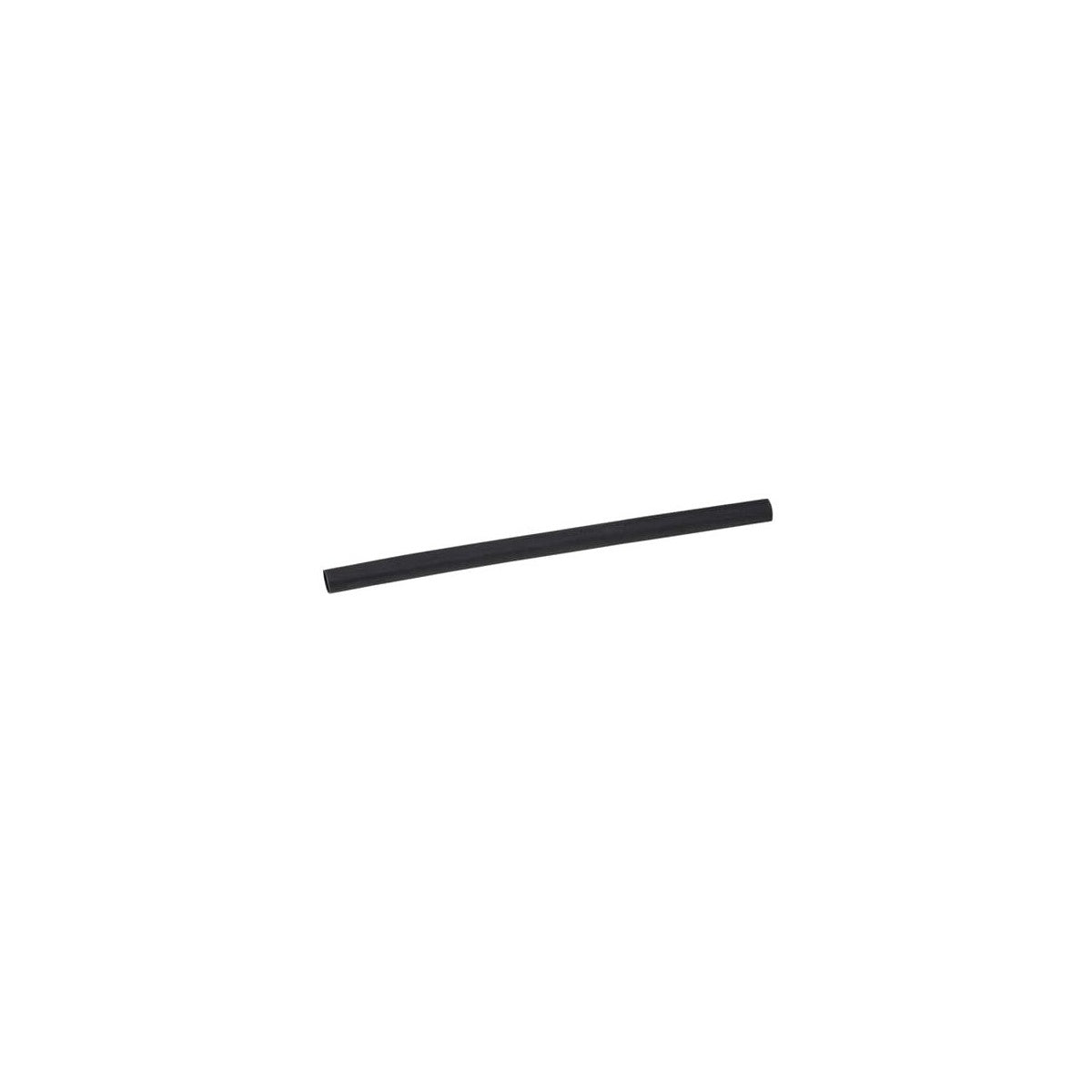

THOMAS & BETTS CPO1000-0-25 HTSHK THIN WALL 2/0-350 BLK 25FT Heat Shrinkable Tubing

This thin-wall heat shrinkable tubing from Thomas & Betts is designed for electrical insulation and protection applications. It is made of flame-retardant, cross-linked polyolefin and offers a 2:1 shrink ratio, suitable for wire and cable management in electrical distribution and lighting solutions. The tubing provides reliable insulation for wire sizes ranging from 2/0 to 350 kcmil and is ideal for use by electrical distributors and switchgear suppliers requiring durable, heat-shrinkable wire protection.

Specifications

• Color: Black
• Length: 25 ft
• Material: Cross-linked polyolefin
• Shrink Ratio: 2:1
• Operating Temperature: -55 ¬∞C to 135 ¬∞C
• Nominal Recovered Inner Diameter: 0.50 in
• Nominal Wall Thickness: 0.04 in
• Voltage Rating: 600 V
• Cable Size Range: 2/0 to 350 kcmil
• Certifications: UL 224, CSA C22.2 No. 198.1, MIL-DTL-23053/5 Class 1 & 2, AMS 3636 & 3637, DEF STAN 59-97 Type 2a

Features

• Flame-retardant and heat-resistant for enhanced safety
• Thin-wall design for space-saving wire insulation
• Non-lined tubing for versatile electrical applications
• Suitable for use in wire management and connectivity systems
• Available on a 25-foot reel for convenient deployment
