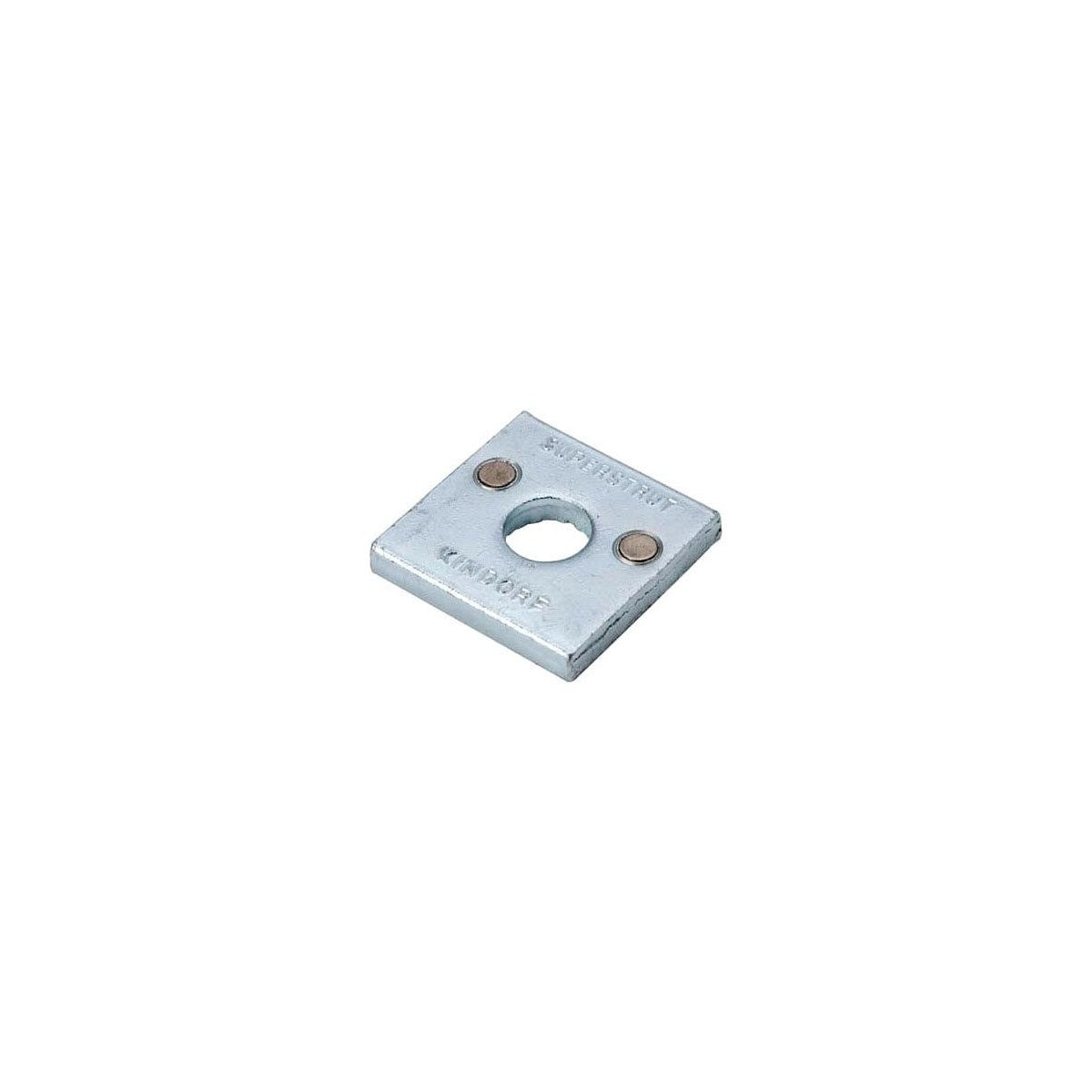

THOMAS & BETTS AB241M 3/8 EG Square Washer with Magnets – Magnetic Fitting for Metal Framing

The THOMAS & BETTS AB241M 3/8 EG is a square washer designed for use with 3/8 inch bolts in metal framing applications. Electro-galvanized steel construction provides corrosion resistance, making it suitable for industrial and commercial electrical installations. The embedded powerful nickel-plated magnets secure the fitting to strut channels during assembly, improving installation efficiency and safety by holding fittings and strut together without manual support. This product is ideal for electrical distributors and switchgear suppliers requiring reliable wire and cable management hardware and lighting solutions support.

Specifications

• Material: Steel
• Surface Finish: Electro-Galvanized (SilverGalv)
• Dimensions: 1-1/2 in x 1-1/2 in square washer
• Bolt Size: 3/8 inch
• Thickness: 3/16 inch
• Product Weight: 0.1600 lb
• Country of Origin: China
• UPC: 616013133682
• RoHS Compliant

Features

• Embedded nickel-plated magnets provide hands-free positioning during assembly
• Electro-galvanized finish offers corrosion resistance and electrical conductivity for grounding
• Compatible with traditional and spring channel nuts
• Enhances installer safety and convenience by eliminating the need to hold fittings manually
• Suitable for new industrial and commercial construction projects
