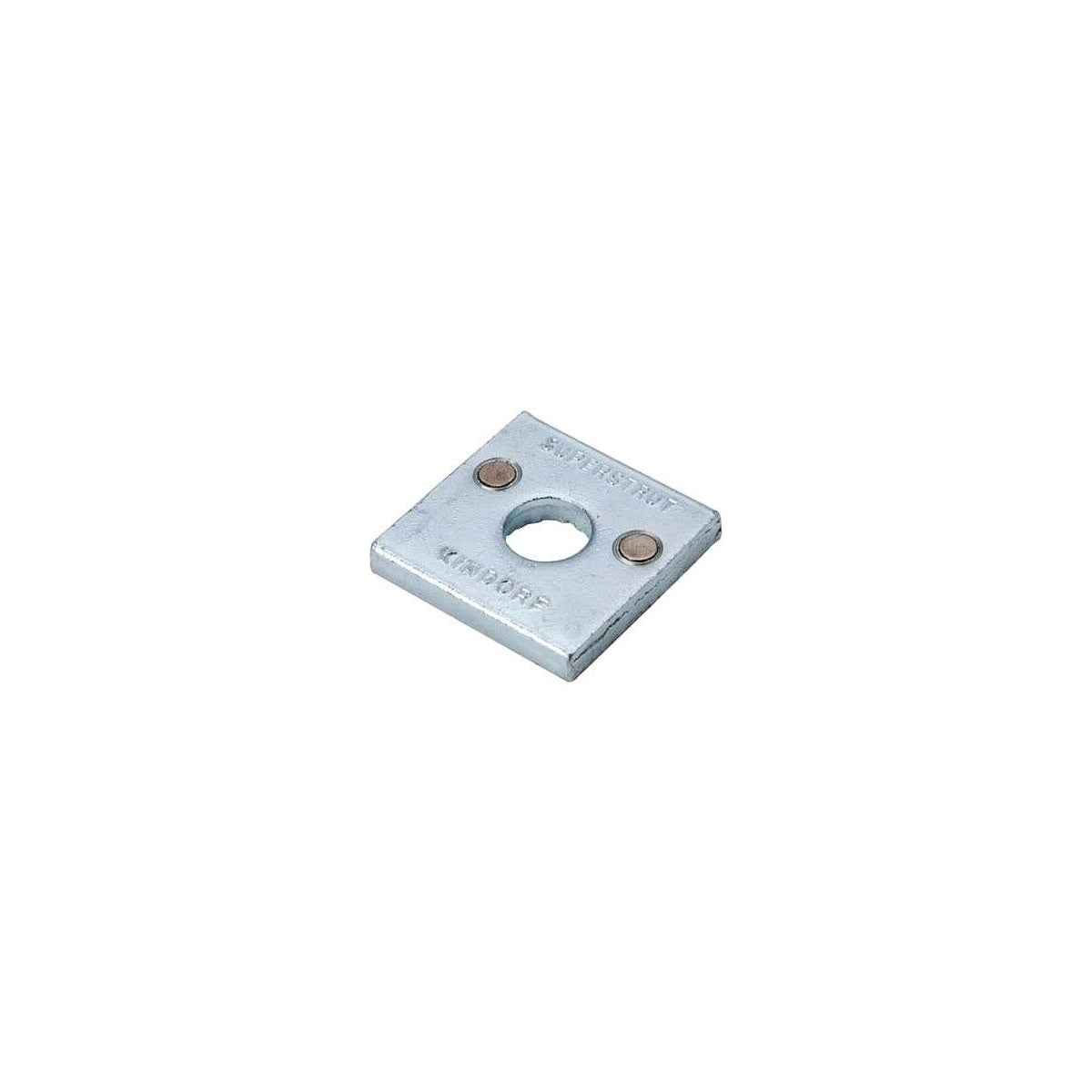

THOMAS & BETTS AB241M1/4EG Square Washer with Magnets for Electrical Fittings

The THOMAS & BETTS AB241M1/4EG is a square washer designed for use with 1/4 inch bolts, featuring embedded powerful nickel-plated magnets. This electro-galvanized steel washer is intended to add convenience and safety during strut assembly, enabling electrical distributors and switchgear suppliers to hold fittings and strut components together efficiently without manual support. It is suitable for new industrial and commercial construction applications, particularly in wire and cable management and lighting solutions installations.

Specifications

• Manufacturer: Thomas & Betts
• Manufacturer Part Number: AB241M 1/4 EG
• Material: Steel
• Surface Finish: Electro-Galvanized (SilverGalv)
• Bolt Size Compatibility: 1/4 inch
• Thickness: 1/8 inch
• Dimensions: 1-1/2 inches x 1-1/2 inches (Square)
• Product Weight: 0.1600 lb
• Country of Origin: China
• UPC: 616013133705
• RoHS Compliant: Yes

Features

• Embedded nickel-plated magnets secure the washer to strut components during assembly, acting as a third hand for installers.
• Electro-galvanized finish provides corrosion resistance suitable for industrial environments.
• Facilitates safer and more efficient installation of fittings, bolts, nuts, and rods by eliminating the need to manually hold parts together.
• Compatible with traditional or spring channel nuts used in metal framing systems.
• Must be bolted in place for permanent installation following standard procedures; magnets serve only as an installer aid.
