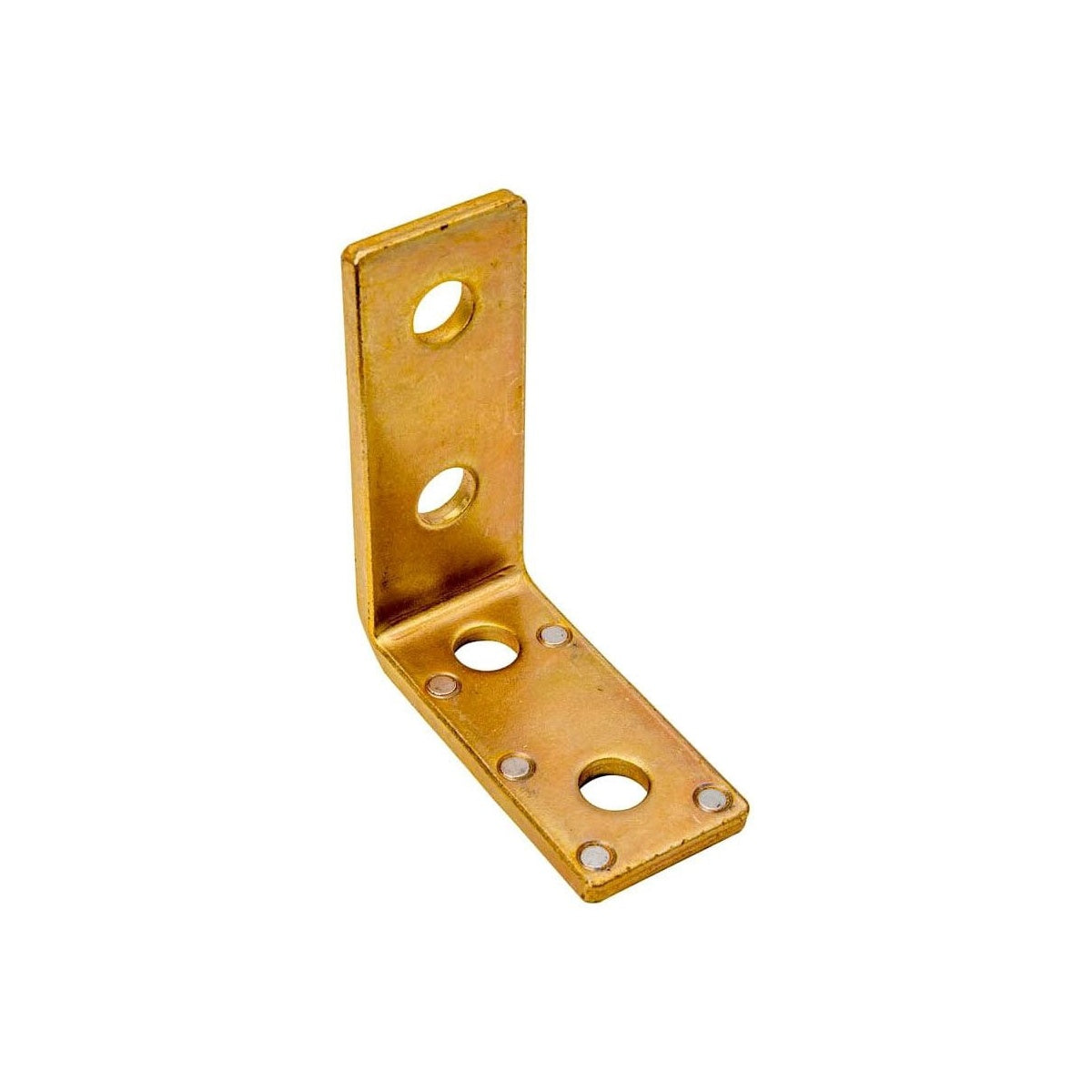

THOMAS & BETTS AB205M 90 Degree Angle Fitting with Magnets - Steel Bracket

This 90 degree angle fitting from Thomas & Betts is designed for new industrial and commercial construction applications. It provides secure and convenient assembly of metal framing systems, commonly used by electrical distributors and lighting solutions providers. Featuring embedded magnets, this fitting aids installers by holding the fitting in place during assembly, improving efficiency and safety when working with wire and cable or switchgear supplier installations.

Specifications

• Product Name: THOMAS & BETTS AB205M 90DEG ANG FTG GG W/ MAGNETS HT4-1/8
• Manufacturer Part #: AB205M
• Material: Steel
• Finish: GoldGalv/Standard
• Length: 3-1/2 in
• Height: 4-1/8 in
• Hole Diameter: 9/16 in
• Product Weight: 0.68 lb
• Application: New industrial and commercial construction
• Special Features: Embedded magnets for installer convenience
• Country of Origin: China
• UPC: 616013133590

Features

• Embedded nickel-plated magnets securely hold the fitting during assembly
• Eliminates the need to manually hold fittings and strut together while installing bolts, nuts, and rods
• GoldGalv finish provides corrosion resistance and low electrical resistance for grounding
• Compatible with standard Superstrut metal framing components
• Designed to improve installer efficiency and safety in electrical and lighting installations
