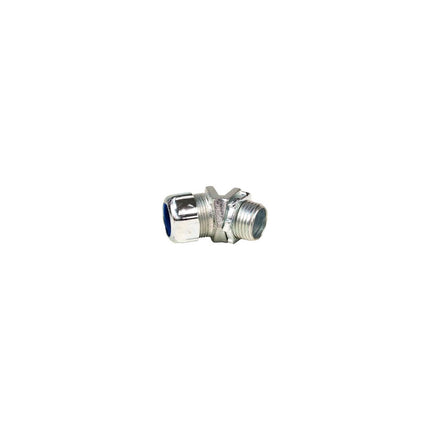

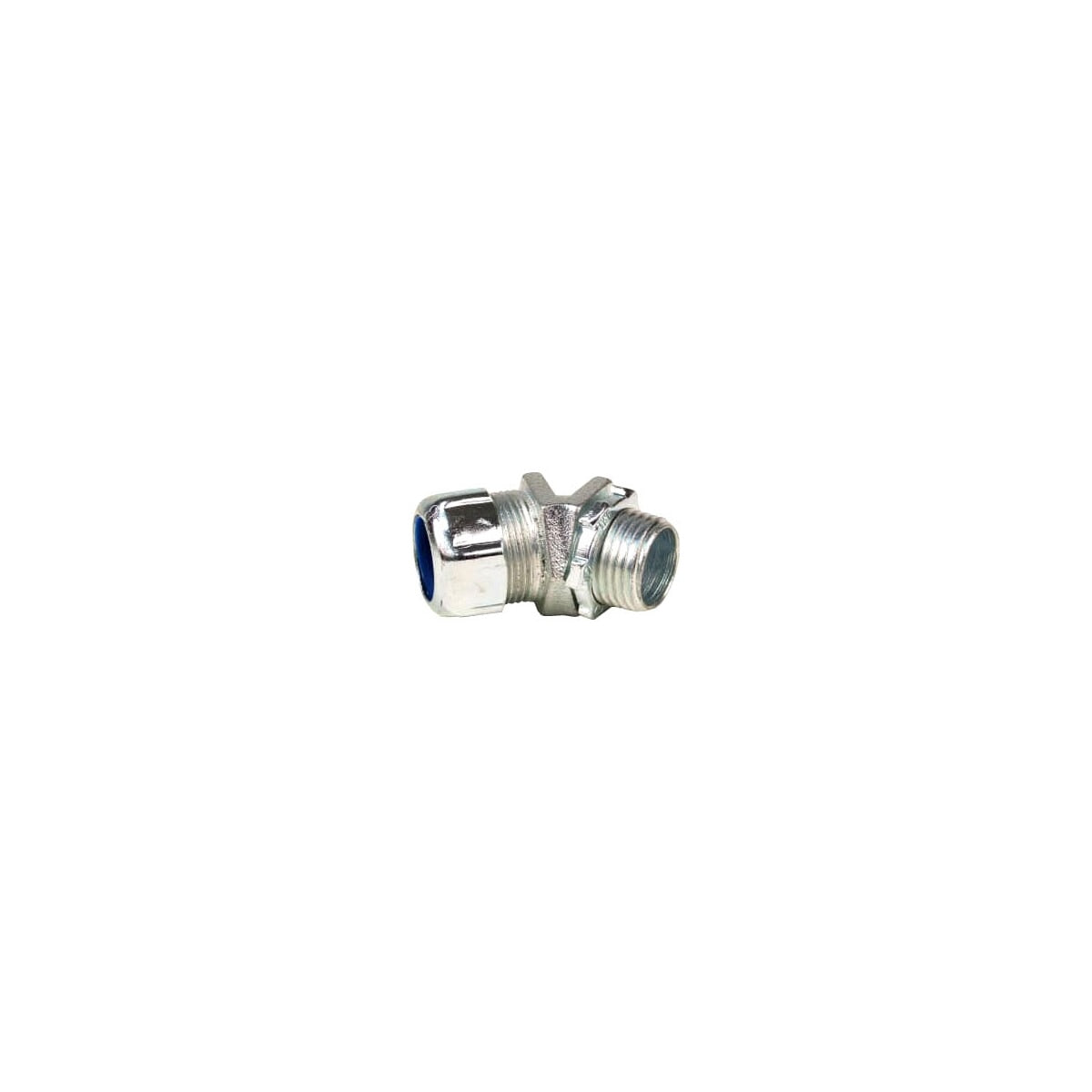

THOMAS & BETTS 5249 3 IN NON-INSUL 45 DEG LIQTIGHT CONN Liquidtight Flexible Metal Conduit Fitting

The THOMAS & BETTS 5249 is a 3-inch non-insulated, 45-degree liquidtight conduit fitting designed for use where flexible metal raceway is installed in outdoor or indoor locations exposed to continuous or intermittent moisture. This fitting is suitable for electrical distributors and lighting solutions requiring secure, watertight connections in wire and cable management systems. It is manufactured from malleable iron, ensuring durability and compliance with industry standards.

Specifications

• Material: Malleable Iron
• Size: 3 Inch
• Application: Used where flexible metal raceway is installed in outdoor or indoor locations exposed to continuous or intermittent moisture
• Product Weight: 7.86 lbs
• Manufacturer Part #: 5249
• UPC: 786210052496

Features

• Designed for watertight and oil-tight installation at box or enclosure termination
• Ground cone design compresses metallic convolutions for high-quality ground contact and raceway holding power
• Single helical thread on ground cone prevents cross-threading and accommodates variations in raceway diameters
• Rolled over edge protects conductors
• Sealing ring grips and seals at leading and trailing edges without abrading raceway jacket
• Sealing ring includes grooves for anti-sleeving and shoulders for extra sealing
• Symmetrical sealing ring design ensures foolproof assembly
• Can be disconnected and reused
• Electro zinc plated and chromate coated finish for corrosion resistance
• Conforms with JIC requirements and UL 514B, CSA C22.2 No. 18.3, NEMA FB-1, NFPA 70-2008 (ANSI), and Federal Specifications
