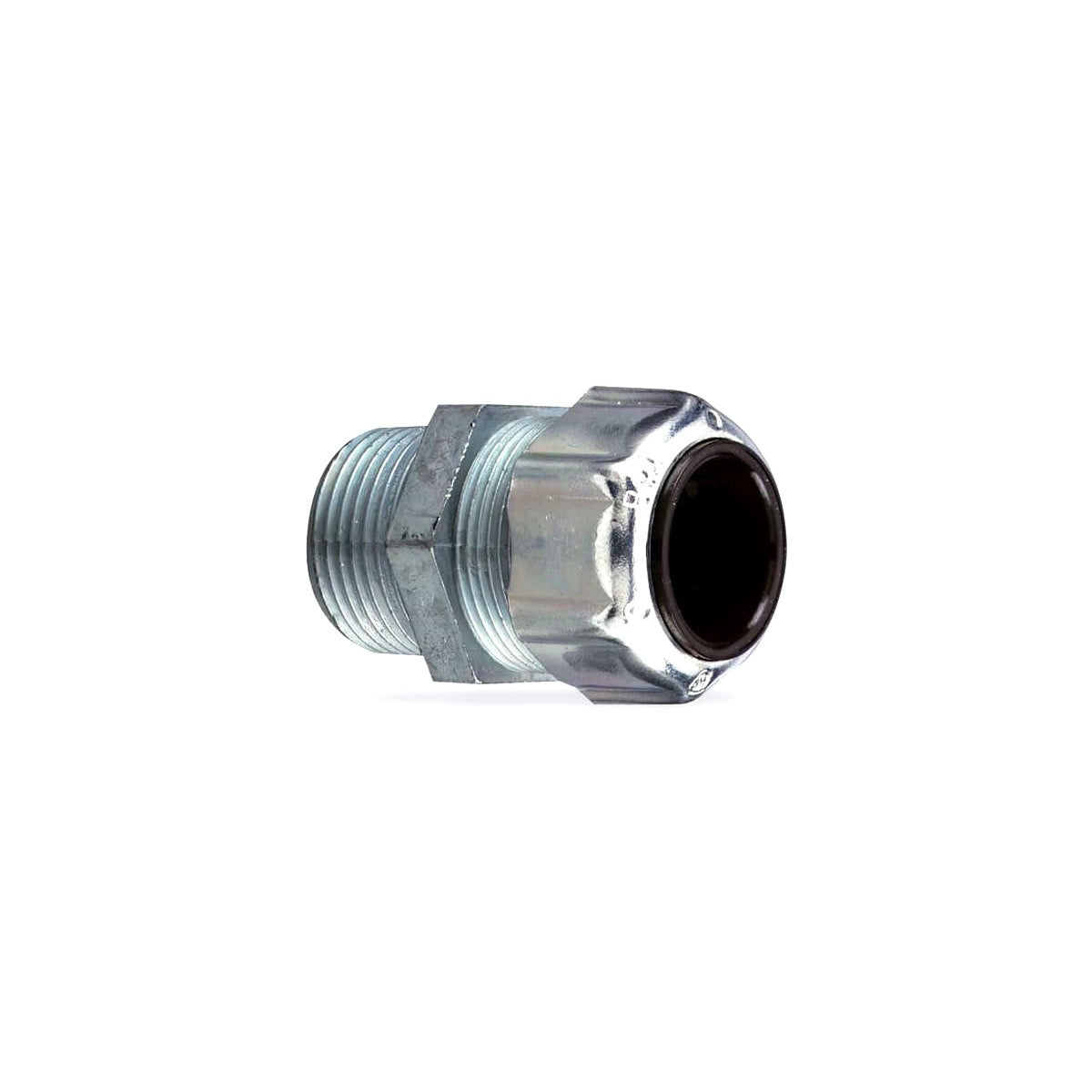

THOMAS & BETTS 2545 1 IN CORD CONNECTOR .625-.750 RANGE Liquidtight Cord Connector

The Thomas & Betts 2545 cord connector is designed for secure and reliable strain relief in electrical wiring applications. As a metallic liquidtight strain-relief cord connector, it is suited for general control and power cable use, providing a mechanical grip and water- and oil-resistant seal for flexible cords, armored or unarmored cables. This product is ideal for electrical distributors and lighting solutions providers requiring dependable wire and cable fittings and switchgear accessories.

Specifications

• Manufacturer: Thomas & Betts
• Manufacturer Part #: 2545
• Cable Range: 0.625–0.750 inches
• Hub Size: 1 inch
• Throat Diameter (min.): 49⁄64 inch
• Dimensions (A x B x C): 1 11⁄16 in x 1 23⁄32 in x 25⁄32 in
• Product Weight: 25.0000 (units not specified)
• UPC: 786210025452
• Body Material: Malleable Iron or Die-Cast Zinc
• Gland Material: Steel
• Bushing Material: Neoprene
• UL Listed as liquidtight strain relief and outlet bushing (UL File No. E 13938)
• CSA Certified Watertight (CSA File No. 589 & 4484)
• Temperature Rating: 105°C
• Suitable for ordinary, wet, or dry locations
• Complies with JIC standards

Features

• Provides a mechanical grip and water- and oil-resistant seal for cord and jacketed armored cables
• Forms a non-slip connection or termination for flexible cord and cable
• Ensures grounding continuity of cable armor
• Extended range with superior strain relief
• Reduced overall size fits into tighter spaces
• Gland nut designed to restrict cable bending
• Sturdy neoprene bushings and tapered hub threads for durability
