Thermoplastic Two Headed LED Emergency Fixture - Emergency Lighting Solutions

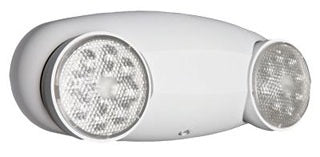

The Lithonia Lighting ELM2 LED Quantum Thermoplastic Emergency Light provides reliable emergency illumination for a minimum of 90 minutes upon loss of AC power. Designed for indoor use, this compact, low-profile fixture features two adjustable LED lamp heads with a unique track-and-swivel design for flexible lighting direction. Its durable thermoplastic housing is impact-resistant, scratch-resistant, and corrosion-proof, making it suitable for various commercial and institutional electrical distributor applications requiring emergency lighting solutions and wire and cable integration.

Specifications

• Material: Thermoplastic
• Color: White
• Finish: Matte
• Lamp Type: LED
• Lens Type: Patterned
• Environment: Indoor
• Battery: Sealed, maintenance-free nickel-cadmium, 3.6V with 90-minute capacity
• Voltage: Dual-voltage 120/277V
• Product Weight: 1.45 lbs
• Dimensions: 10-1/4" length x 4-1/4" height x 2-3/4" depth
• UL Listed for damp locations, meets UL 924, NFPA 101, NEC, and OSHA illumination standards

Features

• Two LED lamp heads with 12 series-parallel white LEDs each for redundant light sources and up to 10 years LED life
• Unique track-and-swivel lamp head design allows full range of adjustment
• Low-profile, integrated test switch and pilot light with bright red status indicator
• Engineering-grade thermoplastic housing resists impact, scratches, corrosion, and UV discoloration
• Quick-mount snap-together construction enables installation in under three minutes
• Current-limiting charger maximizes battery life and minimizes energy consumption
• Short-circuit and thermal compensation protection for charger circuitry
• AC/LVD reset prevents battery damage from deep discharge
• Optional high-output battery available for 6W remote lamp capacity
• Compatible with Quantum LED series remote heads and self-diagnostics options
