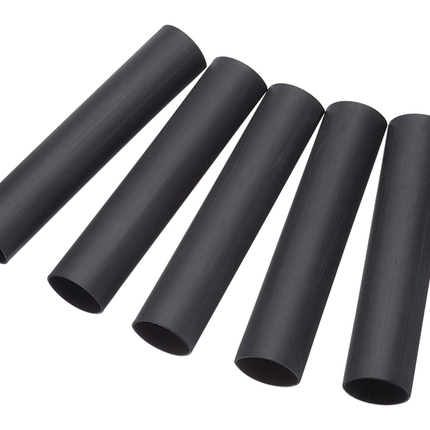

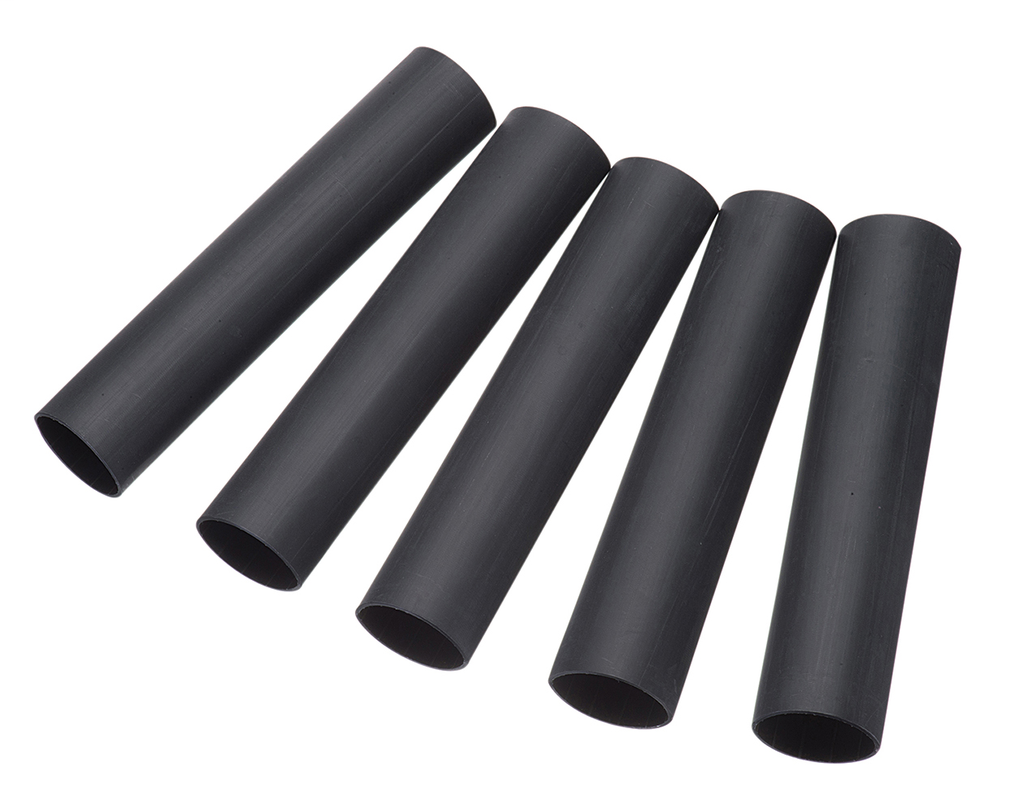

Thermo-Shrink® Heavy-Wall Heat Shrink, 9" Length, 4/0-400 MCM – Heat Shrink Tubing

This Thermo-Shrink® Heavy-Wall Heat Shrink tubing by IDEAL Industries is designed to provide durable insulation and protection for electrical splices in wire and cable applications. Suitable for use by electrical distributors and switchgear suppliers, it supports above-grade, underground, and underwater installations. The tubing features a 3:1 shrink ratio and an adhesive liner for complete sealing, making it ideal for reliable electrical and lighting solutions.

Specifications

• Length: 9 IN
• Minimum Shrink Temperature: 120 - 250 DEG C (200 DEG C Recommended)
• Continuous Operating Temperature: -55 To 110 DEG C
• Heat Aging: 500 PCT (168 HR At 175 DEG C Tensile Strength Elongation)
• Heat Shock: No Cracks, Flowing Or Dripping (4 HR At 225 DEG C)
• Dielectric Strength: 500 V/MIL (20 KV MIN)
• Low Temperature Flexibility: -55 DEG C
• Product Weight: 0.4000 lbs
• Manufacturer Part #: 46-356

Features

• TS-46 irradiated cross-linked polyolefin with 3:1 standard shrink ratio
• Adhesive liner provides complete insulation and protection to electrical splices
• Maximum flame retardant
• Rated for 600V, 90°C continuous use
• Meets UL 486D, CSA C22.2 No. 198.2, ANSI C119.1, MIL-DTL-23053/15, IEEE 383 Vertical Flame Test, and other industry standards

Downloads & Links

• Spec Sheet
