Thermo-Shrink® Heavy-Wall Heat Shrink, 48" Length, 1.500 OD
SKU: #211428
Part: #46-358
UPC: 783250463589
Thermo-Shrink® Heavy-Wall Heat Shrink, 48" Length, 1.500 OD
SKU: #211428
Part: #46-358
UPC: 783250463589
Total Price: $89.71 per each Sold in increments of 5 each
Next day delivery
Description

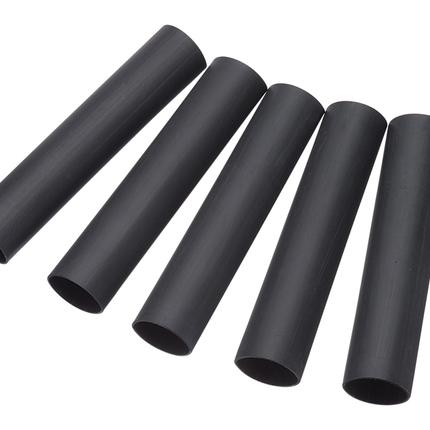

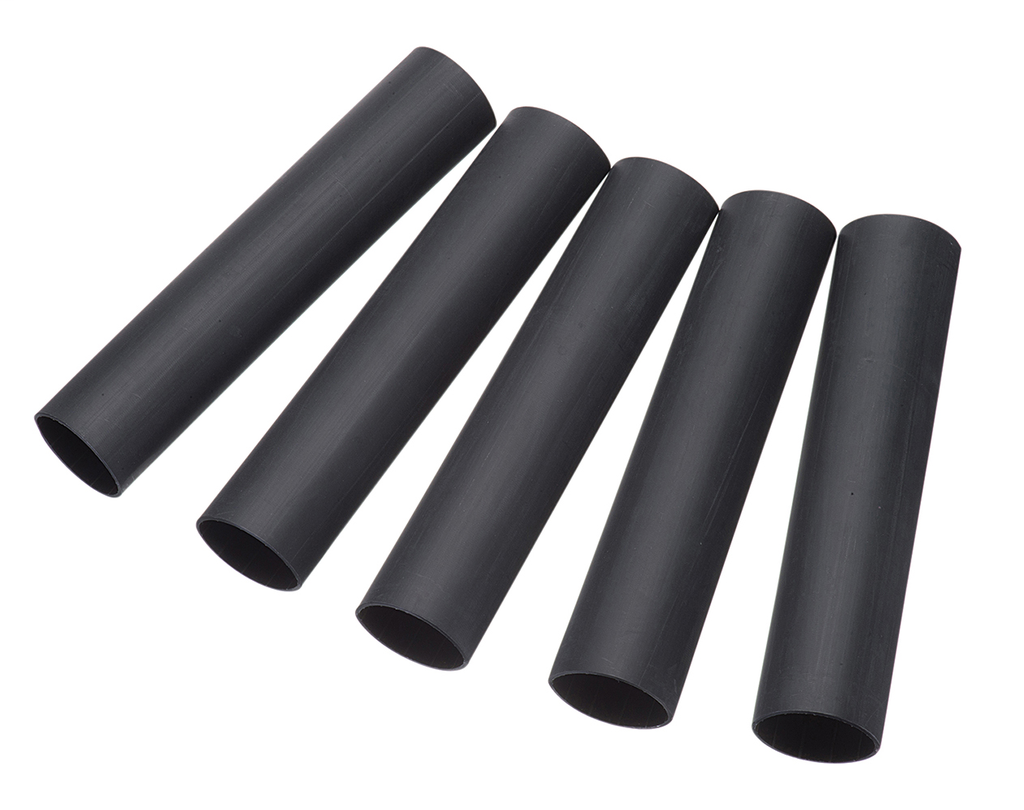

Thermo-Shrink® Heavy-Wall Heat Shrink, 48" Length, 1.500 OD – Heat Shrink Tubing
This Thermo-Shrink® Heavy-Wall Heat Shrink tubing by IDEAL Industries provides reliable insulation and protection for electrical splices in various applications including above-grade, underground, and underwater environments. Designed for electrical distributors and lighting solutions requiring durable wire and cable protection, this tubing features a 3:1 shrink ratio and an adhesive liner for complete sealing. It is suitable for use in demanding conditions and supports continuous operating temperatures from -55°C to 110°C.
Specifications
- Length: 48 IN
- Minimum Shrink Temperature: 120 - 250 DEG C (200 DEG C Recommended)
- Continuous Operating Temperature: -55 To 110 DEG C
- Heat Aging: 500 PCT (168 HR At 175 DEG C Tensile Strength Elongation)
- Heat Shock: No Cracks, Flowing Or Dripping (4 HR At 225 DEG C)
- Dielectric Strength: 500 V/MIL (20 KV MIN)
- Low Temperature Flexibility: -55 DEG C
- Product Weight: 4.5 lbs
- Manufacturer Part #: 46-358
- UPC: 783250463589
Features
- TS-46 irradiated cross-linked polyolefin with 3:1 standard shrink ratio
- Adhesive liner provides complete insulation and protection to electrical splices
- Maximum flame retardant
- Rated for 600V, 90°C continuous use
- Non-corrosive with good to excellent solvent resistance
- Meets UL 486D, CSA C22.2 No. 198.2, ANSI C119.1, MIL-DTL-23053/15, IEEE 383 Vertical Flame Test, and other industry standards
