Morris Products
Terminal Strips 30A 8 Pole
SKU: #273360
Part: #22028
UPC: 601986220286
Morris Products
Terminal Strips 30A 8 Pole
SKU: #273360
Part: #22028
UPC: 601986220286
Description

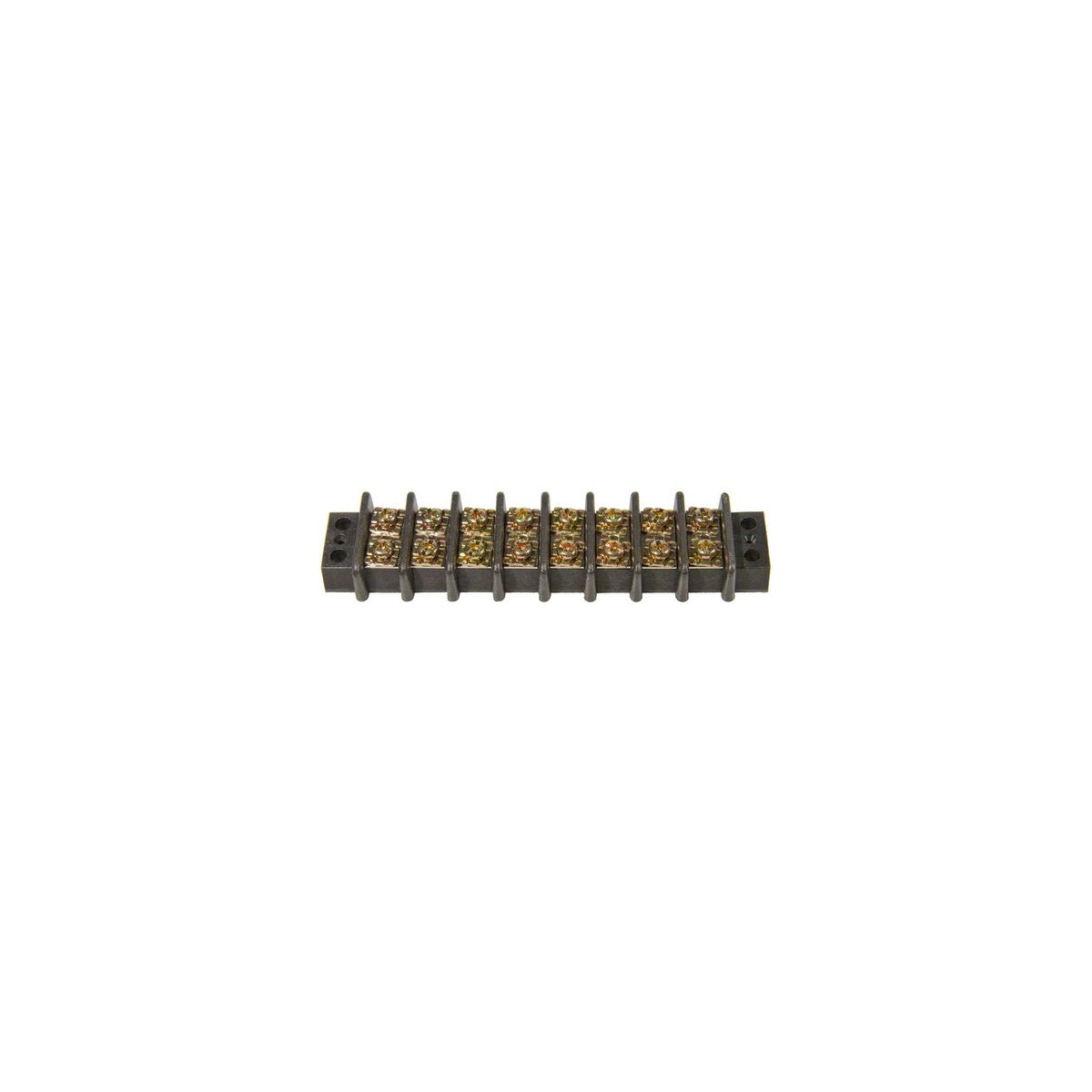

Terminal Strips 30A 8 Pole – Electrical Terminal Strip
The Terminal Strips 30A 8 Pole by Morris Products is designed for secure and reliable electrical connections in various industrial and commercial applications. This terminal strip is suitable for electrical distributors and switchgear suppliers requiring a durable wire and cable connection solution. It features nylon insulation and brass tin-plated terminals to ensure long-lasting performance and electrical safety.
Specifications
- Manufacturer Part #: 22028
- Material: Brass (Terminals), Nylon 6/6 (Housing)
- Length: 5.35 in
- Amperage Rating: 30A
- Voltage Rating: UL 300VAC, CSA 600VAC
- Temperature Rating: -40°F to 248°F (-40°C to 120°C)
- Wire Range AWG: 12-18 Stranded
- Screw Torque Value: 18 Kg-cm
- Dielectric Strength: Withstands AC 2000V/min
- Insulation Resistance: 1000MΩ or more at DC 500V
- Flammability Rating: UL 94V-0
- UPC: 601986220286
- Product Weight: 0.2770 lbs
Features
- Nylon insulated housing for electrical safety
- Brass tin-plated terminals for corrosion resistance and reliable conductivity
- M4 nickel-plated brass terminal screws for secure fastening
- 8 pole design suitable for multi-wire connections
- Compact size with 0.562” center spacing for efficient wiring layouts
- Certified UL and CSA compliant for quality assurance
