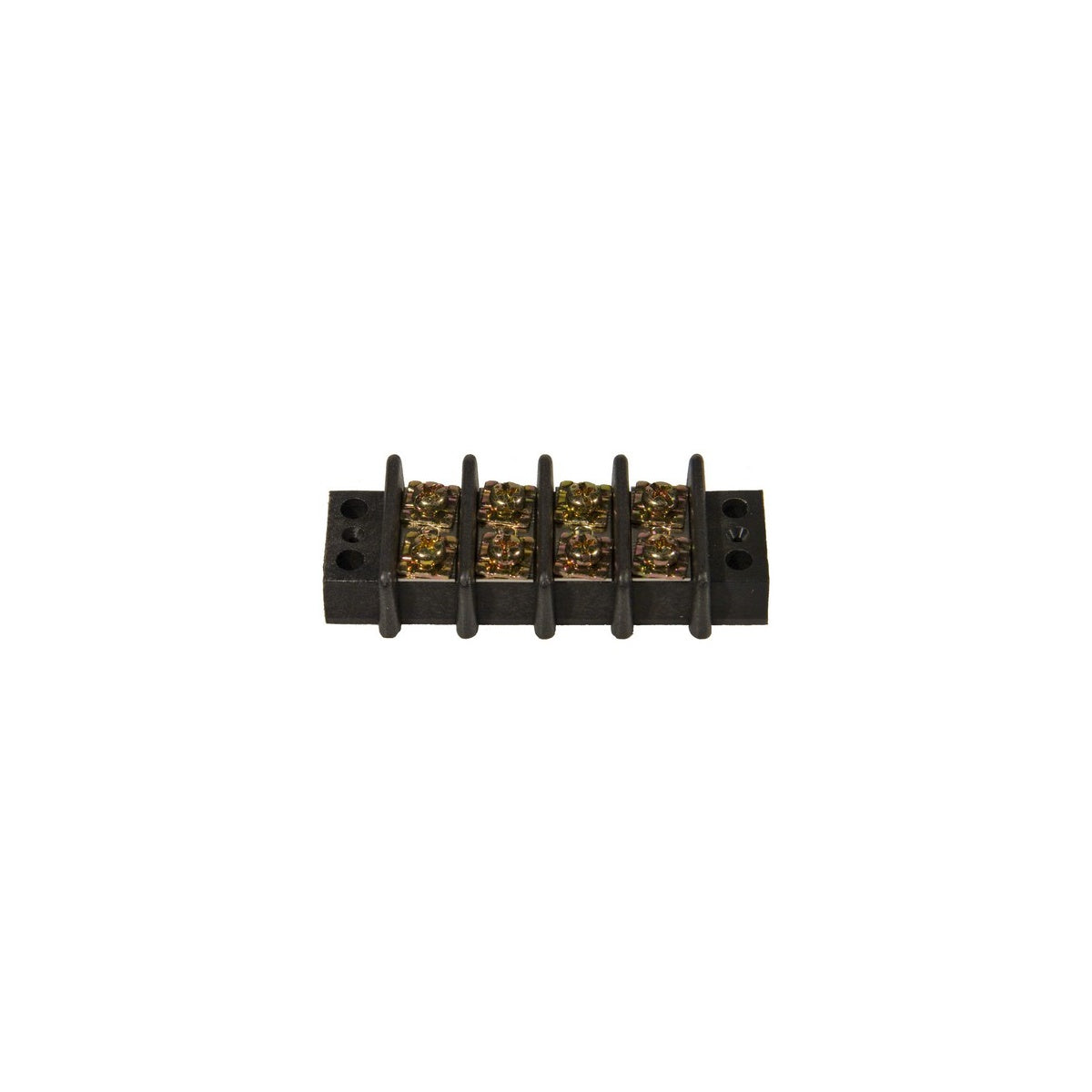

Terminal Strips 30A 4 Pole – Electrical Terminal Strip for Wire and Cable Connections

This Terminal Strip 30A 4 Pole by Morris Products is designed for secure electrical connections in wire and cable applications. Suitable for electrical distributors and switchgear suppliers, it provides reliable current handling and insulation in various industrial and commercial electrical systems.

Specifications

• Amperage Rating: 30A
• Voltage Rating: UL 300VAC, CSA 600VAC
• Material: Brass Tin Plated Terminals, Nylon 6/6 Housing
• Length: 3.15 in
• Wire Range: 12-18 AWG Stranded
• Temperature Rating: -40¬∞F to 248¬∞F (-40¬∞C to 120¬∞C)
• Dielectric Strength: Withstands AC 2000V/min
• Insulation Resistance: 1000MŒ© or more at DC 500V
• Screw Torque Value: 18 Kg-cm
• Terminal Screws: M4 Nickel Plated Brass
• Flammability Rating: UL 94V-0

Features

• Nylon insulated housing for electrical safety
• Brass tin-plated terminals ensure corrosion resistance and conductivity
• Compact 4-pole design suitable for multi-circuit connections
• Compatible with standard wire sizes 12 to 18 AWG
• UL and CSA certified for quality and safety compliance
