Morris Products
Terminal Strips 30A 12 Pole
SKU: #273370
Part: #22032
UPC: 601986220323
Morris Products
Terminal Strips 30A 12 Pole
SKU: #273370
Part: #22032
UPC: 601986220323
Description

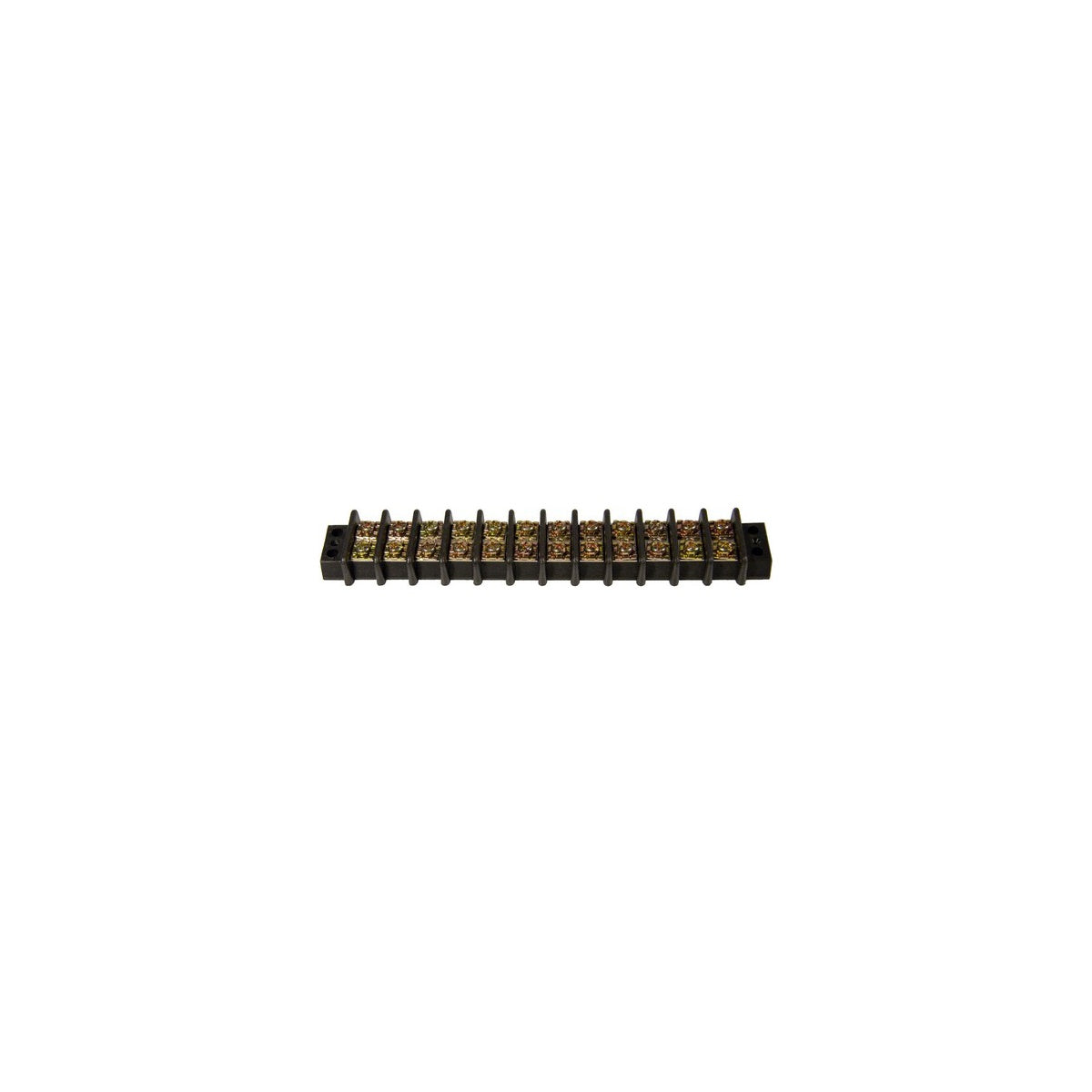

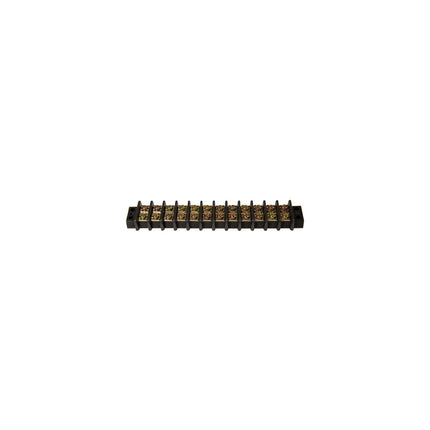

Terminal Strips 30A 12 Pole – Electrical Terminal Strip
This Terminal Strip 30A 12 Pole from Morris Products is designed for reliable electrical distribution and wiring connections. It is suitable for use by electrical distributors and switchgear suppliers requiring durable terminal blocks for wire and cable management in industrial and commercial lighting solutions and electrical systems.
Specifications
- Manufacturer Part #: 22032
- Material: Brass Tin Plated Terminals with Nylon 6/6 Housing
- Length: 7.56 in
- Amperage Rating: 30A
- Voltage Rating: UL 300VAC, CSA 600VAC
- Temperature Rating: -40°F to 248°F (-40°C to 120°C)
- Wire Range: 12-18 AWG Stranded
- Screw Torque Value: 18 Kg-cm
- Dielectric Strength: Withstands AC 2000V/min
- Insulation Resistance: 1000MΩ or More at DC 500V
- Terminal Screws: M4 Nickel Plated Brass
- Flammability Rating: UL 94V-0
- UPC: 601986220323
- Product Weight: 0.4130 lbs
Features
- Nylon insulated housing for electrical safety and durability
- 12 pole configuration for multiple circuit connections
- Brass tin-plated terminals for corrosion resistance and reliable conductivity
- Compact length suitable for panel mounting and space-efficient wiring
- Certified to UL and CSA standards ensuring compliance and safety
