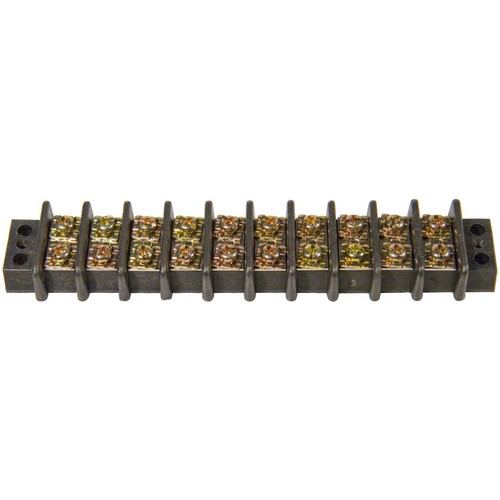

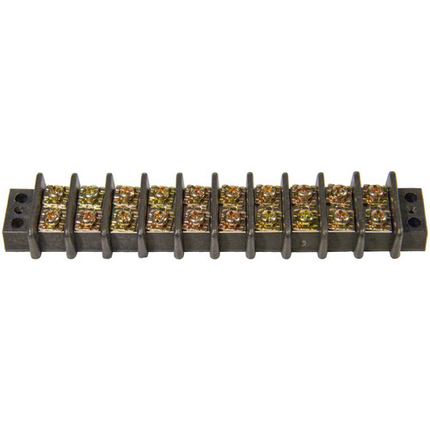

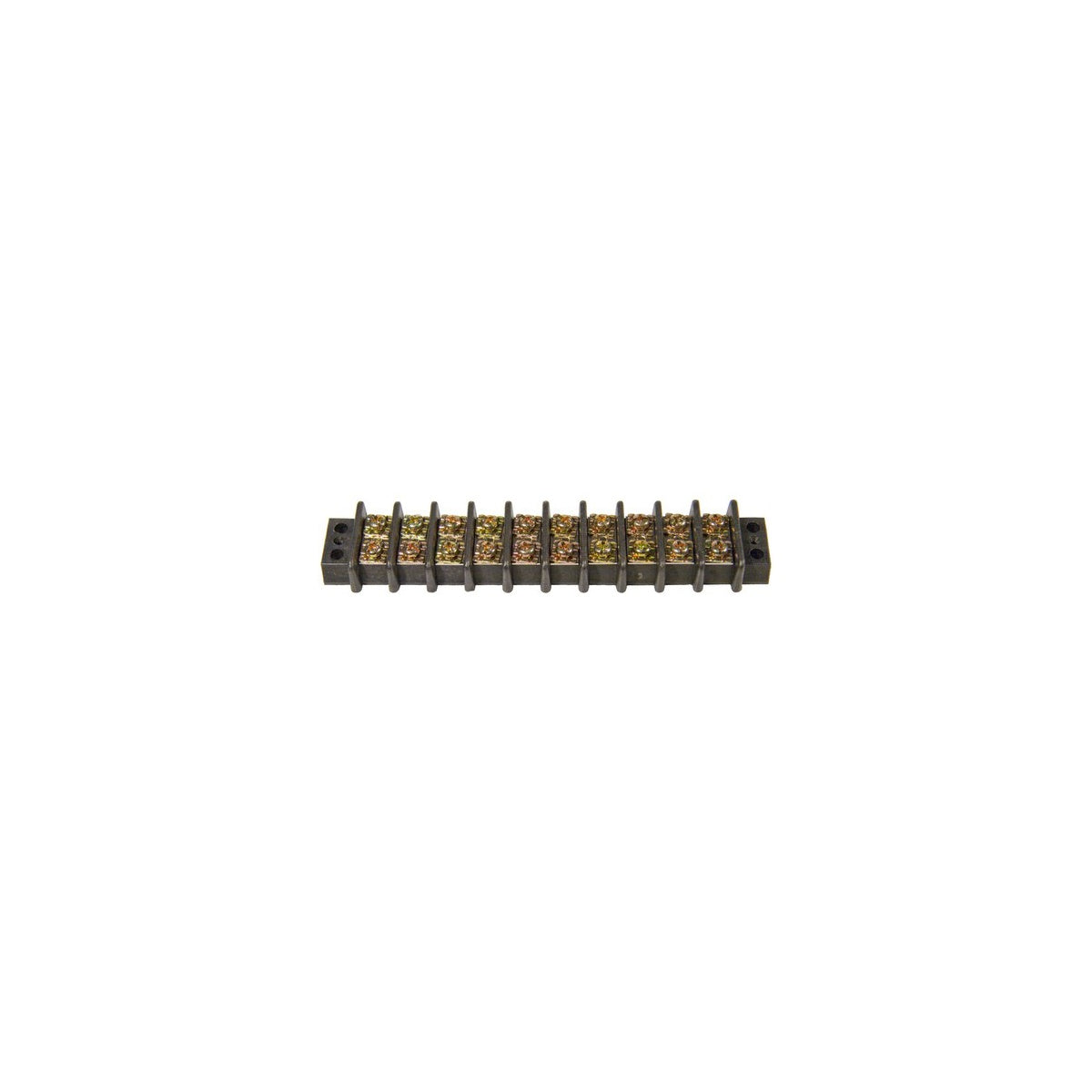

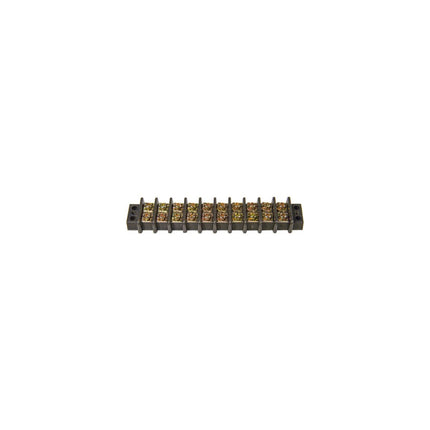

Terminal Strips 10A 10 Pole - Electrical Terminal Blocks

Terminal Strips 10A 10 Pole by Morris Products provide a reliable solution for electrical distributors and switchgear suppliers seeking to simplify wiring connections without splicing. These nylon insulated terminal strips are designed for wire and cable management in electrical and lighting solutions, offering secure, organized termination points for up to 10 poles rated at 10 amps.

Specifications

• Manufacturer Part #: 22037
• Material: Brass
• Product Weight: 0.0980 lbs
• Length: 4.41 in
• Width: 0.77 in
• Rated Voltage: UL 300VAC, CSA 600VAC (from datasheet)
• Center Spacing: 0.562 in (from datasheet)
• Temperature Range: -40¬∞F to 248¬∞F (-40¬∞C to 120¬∞C) (from datasheet)
• Wire Range: AWG 12-22 Stranded (from datasheet)
• Insulator Body: Nylon 66 Plastic (UL 94V-0) (from datasheet)
• Terminal Screws: M4 Nickel Plated Brass (from datasheet)

Features

• Nylon insulated terminal strips avoid splicing and save installation time
• Brass tin-plated terminals ensure reliable conductivity and corrosion resistance
• Compact design supports high-density circuitry to conserve space
• Rated for 10 amps current carrying capacity suitable for various electrical applications
• Bagged in packs of 10 for efficient inventory management

Downloads & Links

• Spec Sheet
