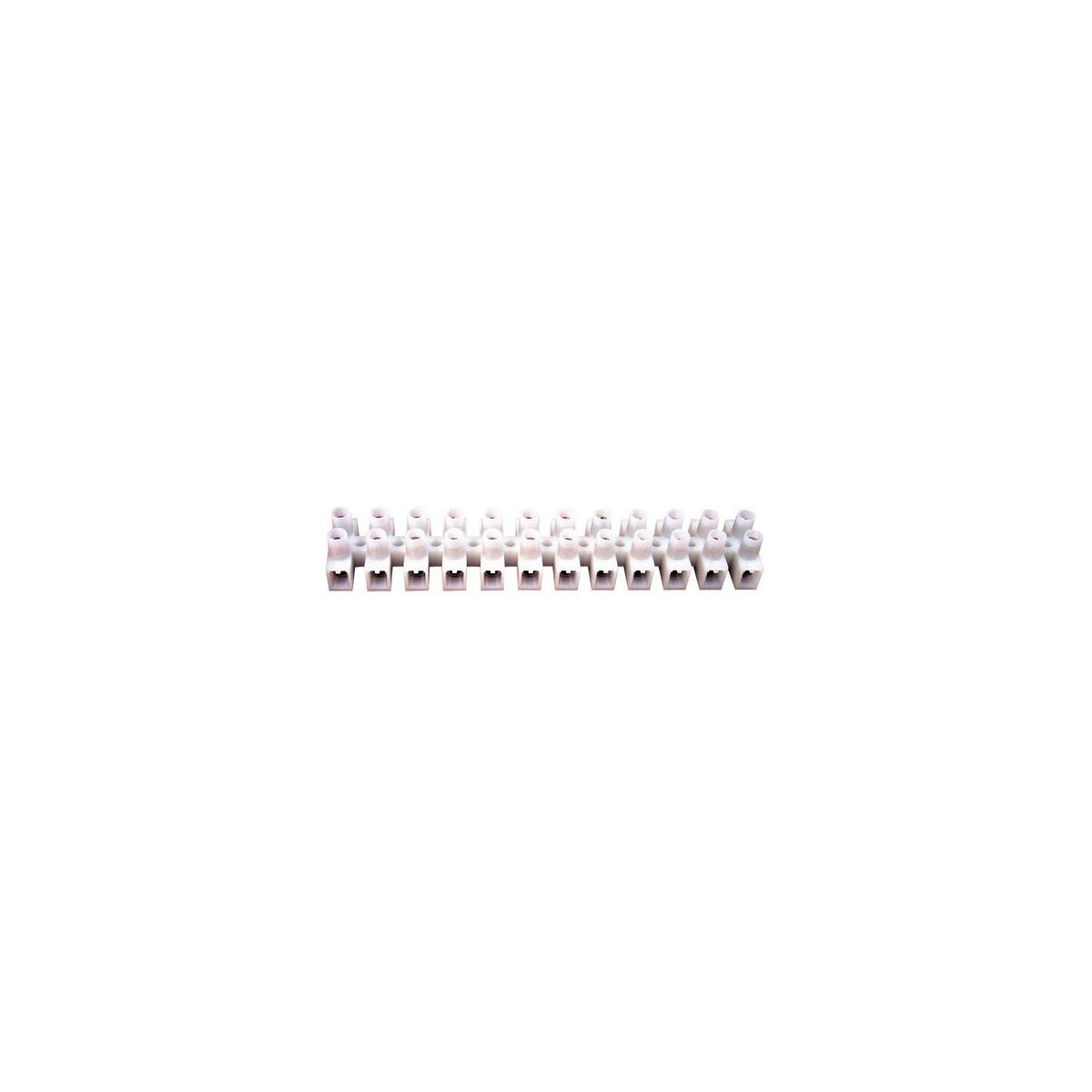

Terminal Blocks 30 Amp Bagged – Electrical Connector

The Terminal Blocks 30 Amp Bagged by Morris Products are designed for reliable wire management and electrical connections in various applications. Suitable for use by electrical distributors and switchgear suppliers, these terminal blocks provide a safe and efficient method for connecting solid or stranded wire in lighting solutions, wire and cable assemblies, and general electrical installations. The product supports both AC and DC circuits and is rated for 30 amperes.

Specifications

• Amperage: 30 amperes
• Length: 4.62 inches
• Material: Brass
• Manufacturer Part #: 22054
• UPC: 601986220545
• Product Weight: 0.1150 lbs

Features

• Touchproof recessed screws and tubular contacts for added safety and prevention of short circuits
• Tubular contacts connect stripped, un-terminated solid or stranded wire directly to each contact
• Integrated stainless steel spring wire protectors prevent twisting and breakage of stranded wire during connection
• Modular 12-circuit design can be cut into smaller sections or stacked end-to-end
• Dead front design to prevent shorts
• Rugged nylon 66 housing, UL 94V2 rated
• Operating temperature rated at 230°F (110°C)
• Brass metal alloy, nickel-plated terminal insert
• Zinc plated, yellow chromed screws
• Compatible with both AC and DC electrical systems
