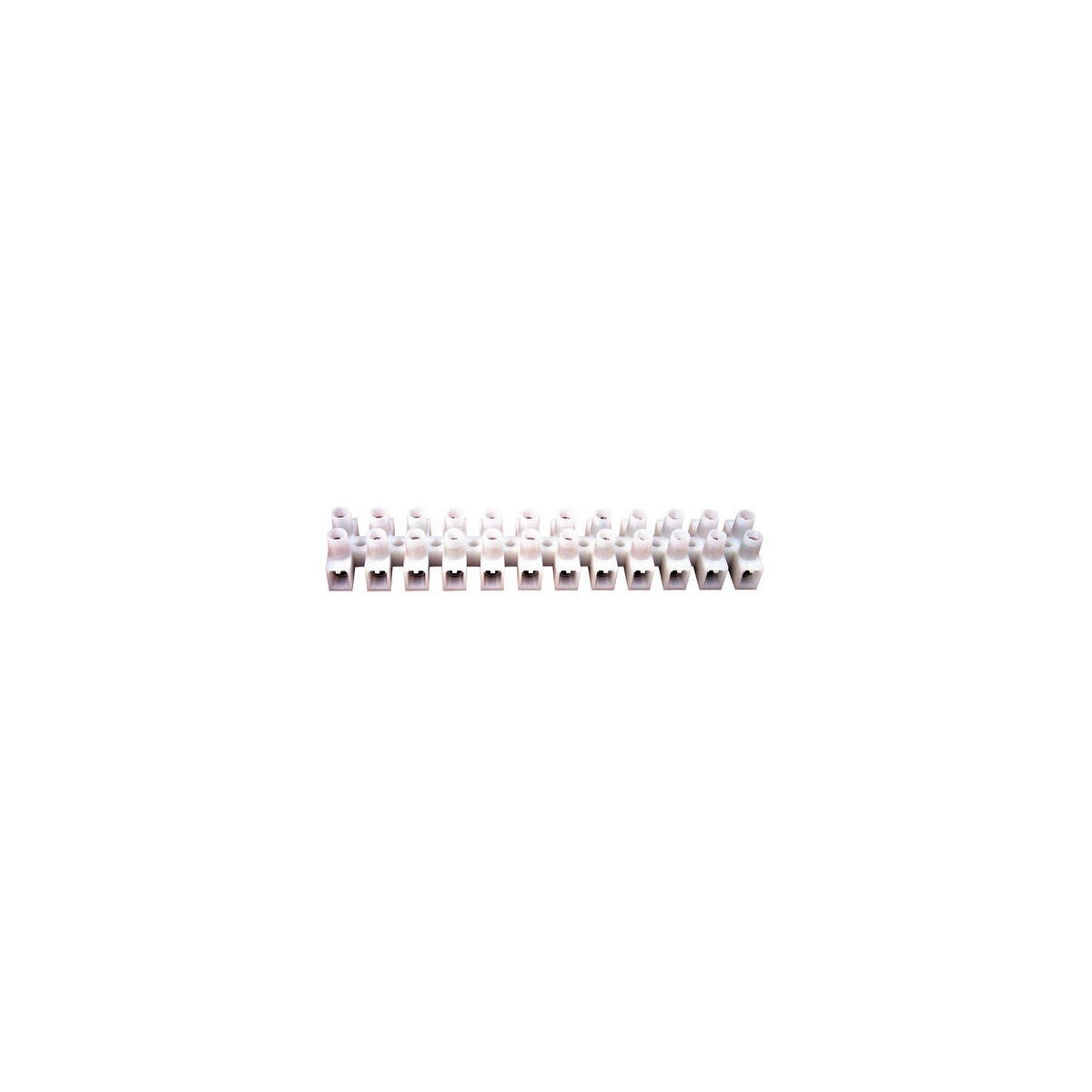

Terminal Blocks 20 Amp Bagged - Electrical Wire and Cable Connector

The Terminal Blocks 20 Amp Bagged by Morris Products provide reliable wire connection solutions suitable for various electrical distribution and lighting applications. Designed for use by electrical distributors and switchgear suppliers, these terminal blocks support up to 20 amperes and are ideal for securely connecting stripped solid or stranded wire in wire management systems.

Specifications

• Amperage: 20 amperes
• Material: Brass
• Length: 3.79 inches
• Voltage Rating: 300V
• Wire Range: 22-12 AWG
• Operating Temperature: 221¬∞F (105¬∞C)
• Manufacturer Part #: 22052
• Product Weight: 0.0790 lbs
• Bag Quantity: 50 pieces

Features

• Touch proof recessed screws and tubular contacts enhance safety and prevent short circuits
• Tubular contacts accommodate stripped, un-terminated solid or stranded wire directly
• Integrated stainless steel spring wire protectors prevent twisting and wire breakage during termination
• Modular 12-circuit design allows cutting into smaller sections or stacking end-to-end
• Dead front design prevents shorts
• Rugged nylon 66 housing with UL 94V2 rating for durability
• Brass metal alloy terminal inserts with nickel plating and zinc-plated, yellow chromated screws
• Suitable for both AC and DC electrical applications
