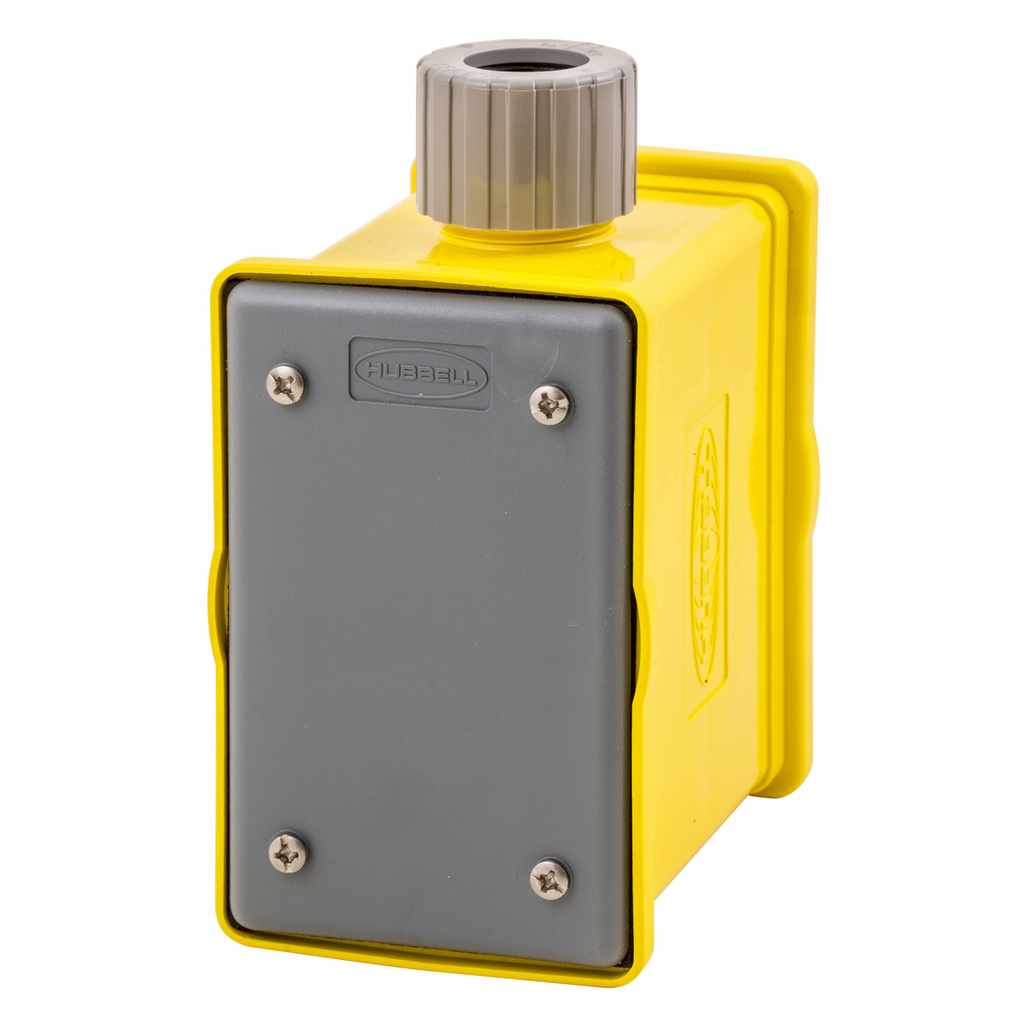

Features

• Impact resistant Valox® cover plate
• Ships with 1) Indoor Blank Plate

Specifications

• Country of Origin: United States
• Dimensions: 5.38 in x 4.2 in x 3.18 in
• Width: 4.900 in
• Each - Width: 4.900 in
• Height: 3.18 in
• Industry Standard(s): C22.2 No. 18 and C22.2 No. 94 Enclosures Types 1, 3R and C22.2 No. 0.4;UL 514C, UL467 and UL50 Enclosures Types 1, 3R
• Performance: Environmental - Flammability - UL 94V-0, 94-5VA classification;Environmental - Impact and Crush Resistance - In accordance with UL 514C, UL50, C22.2 No. 18 and C22.2 No. 94.;Environmental - Moisture Resistance - Wet and damp locations, Enclosure Type 3R when used with weatherproof cover plates.Dry, indoors locations, Enclosure Type 1 with all other cover plates;Environmental - Operating Temperature - 80°C maximum;-35°C minimum;Environmental - UV Resistance - All materials are UV stabilized
• Standards - RoHS Compliance Status: CM
• Application: Devices and Splices
• Cable Entry: Top Hub
• Color: Yellow
• Knockouts: 1) Hub
• Length: 5.38 in
• Size: 5.38 in x 4.2 in x 3.18 in
• Special Features: Ships with 1) Indoor Blank Plate
• Standard: C22.2 No. 18 and C22.2 No. 94 Enclosures Types 1, 3R and C22.2 No. 0.4;UL 514C, UL467 and UL50 Enclosures Types 1, 3R
• Type: Outlet Box
• Display Size: Standard Sized Product
• Style: With One Blank Cover Plate
• Weight: 1 lb.
• Class Code: A20
• Description - Invoice: PORTABLE OUTLET BOX, YL
• Freight Class Code: 06168002
• Harmonization Code: 3926909985
• Image Actual Or Representative: A
• MSDS Flag: No
• Sub Class Code: A20A270
• Cord Range: .38" - .75"
• Material - Mounting Hardware: Cable Mounted
• Construction: Fabricated
• Material: Non-Metallic
• Base Unit of Measure: EA
• BOX SIZE: 6.700x12.500x9.300 (in)
• Carton - Gross Weight per Pack: 5.600 lb.
• Carton - Number of Sub Packs: 10
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 783585318103
• Carton - Total Units: 5 EA
• Case Weight: 4.692 lb.
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Pallet - GTIN - Package: 70783585318102
• Pallet Height: 46.900 in
• Pallet Length: 48.000 in
• Pallet Weight: 616.000 lb.
• Pallet Width: 40.000 in

Certifications

• EU RoHS Indicator: Yes
