Telescoping Strut Replacement, 3/8" Rod

Name: Telescoping Strut Replacement, 3/8 Rod
Brand: nVent Caddy
SKU: 288224
Price: 15.35 USD
Availability: OutOfStock

SKU: #288224

Part: #TSR1220

UPC: 782856916437

nVent Caddy

Telescoping Strut Replacement, 3/8" Rod

SKU: #288224

Part: #TSR1220

UPC: 782856916437

Product form

Out of stock, Call 1-866-853-4768 for availability and price. Most out of stock items can be ordered and are usually available to ship in 1-3 business days.

Free pickup available

Next day delivery

Description

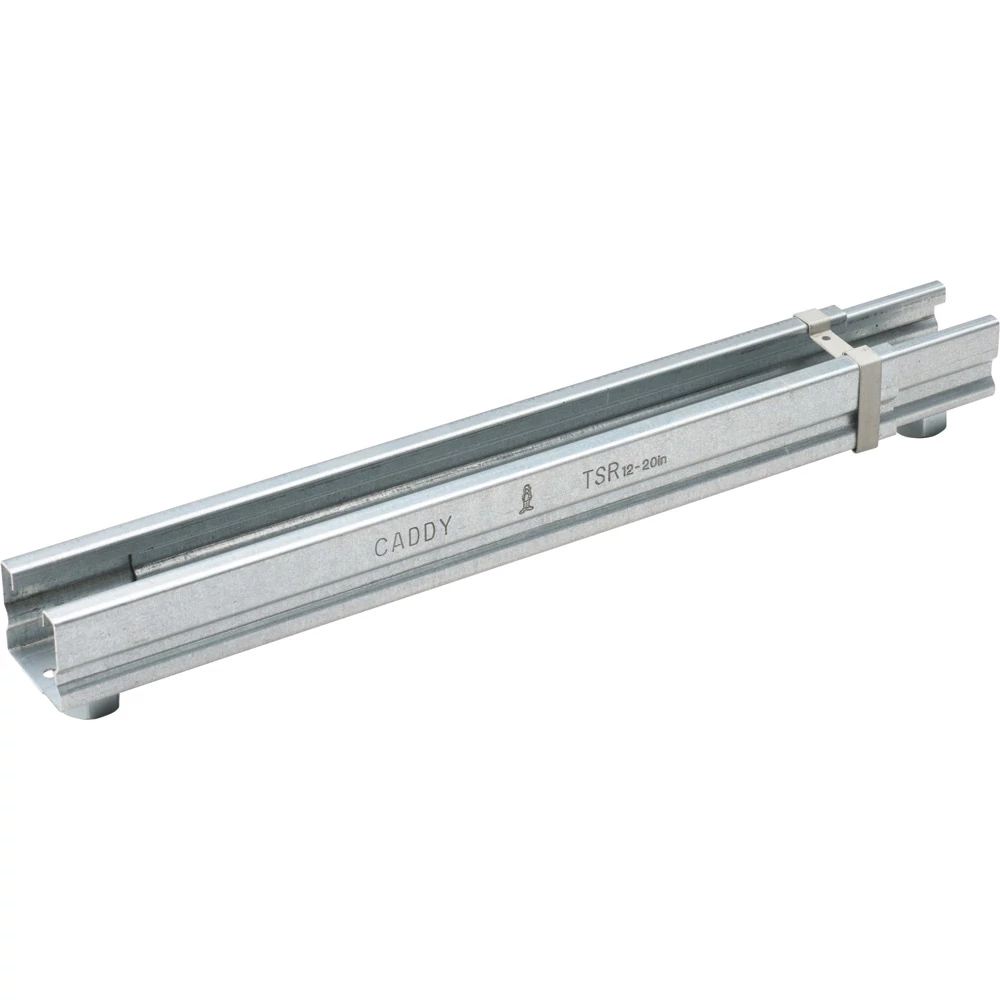

Telescoping Strut Replacement, 3/8" Rod – Adjustable Strut Channel

The nVent CADDY Telescoping Strut Replacement (TSR1220) is designed as an innovative alternative to traditional strut channels for trapeze or other support structures. Manufactured in the USA, this steel strut channel is pregalvanized for corrosion resistance and features a telescoping design that allows adjustment to the desired length. It is suitable for electrical distributors and switchgear suppliers requiring reliable support solutions for wire and cable, conduit, and pipe installations in lighting solutions and industrial applications.

Specifications

Material: Steel
Finish: Pregalvanized
Rod Size: 3/8"
Thickness: 0.04"
Length (A): 12 1/2" - 20"
Length (B): 14" - 21 1/2"
Width (C): 1 5/8"
Height (D): 7/8"
Depth (E): 1 3/8"
Static Load 1: 300 lb (distributed load for 12"–20" installations or point load for 12"–16")
Static Load 2: 200 lb (point load for 16"–20" installations)
Made in USA

Features

Captive threaded nuts enable fastening to threaded rod supports without loose parts
Telescopes to the desired length and locks in place with a spring retainer clip
Standard strut profile runs the entire length, allowing most standard fittings to be placed anywhere between rods
Integrated ruler displays space between hanger rods in inches and centimeters
Supports up to seven 2" conduits, six 2" water-filled pipes at 10' spacing, or up to 18" cable tray
Conduit can be supported on both top and bottom, eliminating the need for double-sided strut
Conduit and pipe placement directly on the strut profile saves vertical space in installations with limited room
