TECH LIGHTING 700WSVNTS-LED WS-VENTANA WALL SN-LED Lighting Fixture

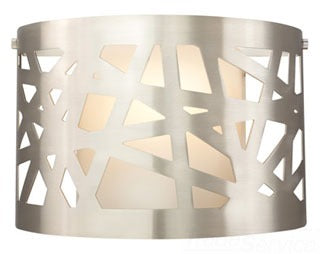

The TECH LIGHTING 700WSVNTS-LED WS-VENTANA WALL SN-LED is a decorative wall lighting solution designed for damp locations, suitable for use by electrical distributors and lighting solutions providers. This fixture features a graceful curved metal frame with intricate, asymmetric cutouts and an inner white case glass that softens the emitted light. It supports multiple lamp types including incandescent, compact fluorescent, and LED, making it versatile for various lighting and wire and cable applications. The product is designed to mount vertically on either a 4" square electrical box with round plaster ring or an octagon electrical box. It is dimmable using a low-voltage electronic dimmer for LED versions and standard incandescent dimmers for incandescent lamps. The fixture is ADA compliant, ensuring accessibility standards are met.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700WSVNTS-LED
• Product Weight: 3.0 lbs
• Voltage: 120V
• Lamp Options:
  • 60 watt or equivalent medium base BT15 halogen (incandescent)
  • 18 watt GX24Q-2 base compact fluorescent
  • 10 watt, 750 lumen, 2700K LED Module
• Mounting: Vertical only
• Suitable for Damp Locations
• Dimming: Incandescent dimmable with standard dimmer; LED dimmable with low-voltage electronic dimmer
• Dimensions:
  • Width: 11" (170 mm)
  • Height: 7" (78 mm)
  • Depth: 4" (101 mm)
• Finish Options: Satin Nickel, Antique Bronze
• Compliance: ADA Compliant
• UPC: 884655240734

Features

• Intricate asymmetric metal cutout design with inner white glass diffuser for softened light output
• Multiple lamp compatibility including LED, compact fluorescent, and incandescent
• Designed for easy mounting on standard electrical boxes with included mounting plate and hardware
• Dimmable options enhance control over lighting ambiance and energy use
• Suitable for damp locations, expanding installation versatility
• ADA compliant design supports accessibility standards
