TECH LIGHTING 700WSRVLZW-LED277 WS-REVEL WALL BRZ WL-LED277 Lighting Fixture

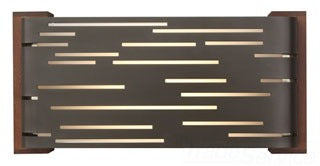

The TECH LIGHTING 700WSRVLZW-LED277 WS-REVEL is a versatile wall-mounted lighting fixture designed for both horizontal and vertical installation. Featuring a sleek metal surface laser-cut with horizontal slots, it allows light to shine through an inner white acrylic diffuser that conceals hardware and lamping from all viewing angles. This product is suitable for damp locations and integrates easily with electrical distributor systems, making it an ideal choice for lighting solutions in commercial and residential environments. It includes a 10 watt, 750 lumen, 2700K LED module that is dimmable with a low-voltage electronic dimmer. The fixture is ADA compliant and designed for mounting on standard 4" square or octagon electrical boxes.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700WSRVLZW-LED277
• Weight: 2.0 lbs
• Lamp Type: 10 watt LED, 2700K, 750 lumens
• Dimming: Compatible with low-voltage electronic dimmer
• Mounting: Fits 4" square or octagon electrical box
• Suitable for: Damp locations
• ADA Compliant
• Finish: Antique Bronze with Walnut Wood end caps (optional)
• Dimensions: 12.7" W x 5.7" H x 3.7" D (323mm x 145mm x 94mm)

Features

• Laser-cut metal surface with horizontal slots for controlled light distribution
• Inner white acrylic diffuser conceals hardware and lamping from all angles
• Optional wood end caps (Maple or Walnut) add warmth to the design
• Can be mounted horizontally or vertically
• Includes LED module that is dimmable with low-voltage electronic dimmer
• Designed for easy installation by qualified electricians
