TECH LIGHTING 700WSESXPNC-LED277 WS-ESSEX WALL NAT SH CH-LED277 Lighting Solutions

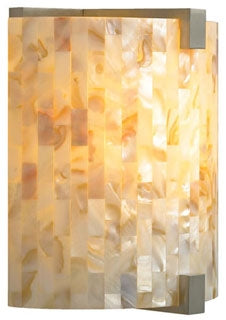

The TECH LIGHTING 700WSESXPNC-LED277 WS-ESSEX is a wall sconce designed to provide ambient, up- and down-light suitable for indoor damp locations. This product is ideal for electrical distributors and lighting solutions providers seeking a versatile fixture compatible with multiple lamp types, including halogen, compact fluorescent, and LED modules. It features glass, shell, or fabric shade options with minimal metal detail, fitting well into wire and cable installations and switchgear supplier projects requiring ADA-compliant lighting.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part Number: 700WSESXPNC-LED277
• Product Weight: 1.61 lbs
• Lamp Types Supported: 120V 60W G9 base halogen, 120V 18W GU24 compact fluorescent, 10W 750 lumen 2700K LED module
• Voltage: 120V and 277V LED options available
• Dimensions: 7.5" height x 5" width x 4" depth (191 mm x 127 mm x 102 mm)
• Suitable Location: Indoor damp locations
• Certification: ETL listed, ADA compliant

Features

• Shade Options: Glass, shell, or fabric with minimal metal detail
• Lighting Effect: Provides ambient, up- and down-light
• Dimming Capability: Incandescent version dimmable with standard incandescent dimmer; LED version dimmable with low-voltage electronic dimmer
• Installation: Designed for NEC compliant junction boxes with clear mounting instructions
• Safety: Requires minimum 90°C supply conductors and proper grounding according to electrical codes
