TECH LIGHTING 700UCF0793B-LED UNDERCAB 07IN 90CRI 30K BK-LED Lighting Solutions

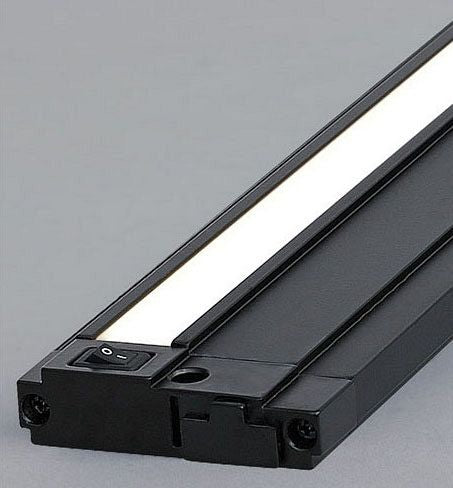

The TECH LIGHTING 700UCF0793B-LED is a compact LED undercabinet light designed for residential and commercial applications. It provides reliable, uniform illumination ideal for task lighting under cabinets and shelves. This lighting solution is suitable for electrical distributors and switchgear suppliers seeking high-quality wire and cable compatible lighting products with integrated features for ease of installation and operation.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700UCF0793B-LED
• Product Weight: 1.0000 lb
• Dimensions (W x H x L): 2.8 in x 0.7 in x 7.2 in
• Color Rendering Index (CRI): 90+
• Color Temperature: 3000K (Warm White)
• Input Power: 120V
• System Power: 4.0 watts (for 7" length model)
• System Efficacy: 54 lumens per watt
• Lumens per Foot: Approximately 430
• Power Factor: 0.94
• Dimming: ELV dimmer compatible, dimming range 5%-15% depending on dimmer
• Housing Color: Black
• Integrated On/Off Switch
• Mounting Method: Wood screws
• Maximum Run Length: 70 feet
• Warranty: 5 years
• Suitable for Damp Locations

Features

• Compact slimline design with die-cast end caps
• Integrated on/off switch for convenient control
• Remote phosphor lens for uniform light distribution
• Jumper connection ports on each end for easy linking of multiple units
• Compatible with low-voltage electronic dimmers
• Reliable integrated driver for consistent performance
• Suitable for undercabinet and under-shelf lighting applications
• Easy installation with mounting holes and included wood screws
