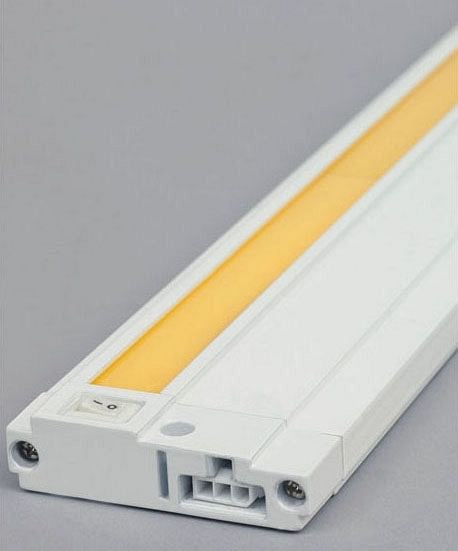

TECH LIGHTING 700UCF0792W-LED Undercabinet LED Lighting Solutions

The TECH LIGHTING 700UCF0792W-LED is a compact undercabinet LED fixture designed for residential and commercial lighting applications. It provides uniform, powerful illumination ideal for undercabinet and under-shelf use. This product is suitable for electrical distributors and lighting solution providers seeking reliable, dimmable LED lighting with integrated on/off switching and versatile mounting options.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700UCF0792W-LED
• Product Dimensions: 7.2 in (Length) x 2.8 in (Width) x 0.7 in (Height)
• Product Weight: 1.0 lb
• Color Temperature: 2700K
• Color Rendering Index (CRI): 90+
• Input Power: 120V
• Power Consumption: 4.0 watts (for 7.2" length model)
• System Efficacy: 54 lumens per watt
• Lumens per Foot: Approximately 430
• Power Factor: 0.94
• Dimming: Compatible with ELV dimmers, dimming range 5%-15% depending on dimmer
• Mounting Method: Wood screws for flush installation
• Housing Color: White
• Remote Phosphor Lens Color: Yellow (off-state)
• Integrated On/Off Switch
• Maximum Run Length: 70 feet (using jumper connectors)
• Warranty: 5 years
• UPC: 884655331746

Features

• Compact slimline design with die-cast end caps
• Integrated on/off switch for easy control
• Jumper connection ports on each end for linking multiple units
• Reliable integrated driver for consistent performance
• Suitable for damp locations
• Low-voltage electronic dimmer compatibility
• Simple installation with mounting holes and included screws
• Remote phosphor lens for uniform light diffusion
