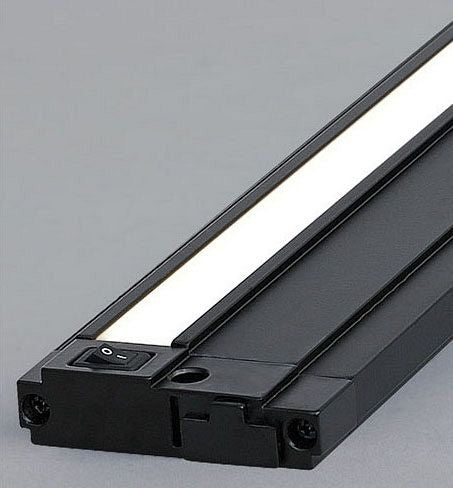

TECH LIGHTING 700UCF0792B-LED Undercabinet LED Lighting

The TECH LIGHTING 700UCF0792B-LED is a compact undercabinet LED lighting solution designed for residential and commercial applications. It offers uniform, high-quality illumination ideal for task lighting under cabinets and shelves. This fixture is suitable for electrical distributors and lighting solution providers focused on wire and cable integration and switchgear supply, supporting efficient, dimmable lighting with a reliable integrated driver.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700UCF0792B-LED
• Product Weight: 1.0 lb
• Dimensions: 7.2 in (Length) x 2.8 in (Width) x 0.7 in (Height)
• Color Temperature: 2700K
• Color Rendering Index (CRI): 90+
• Input Power: 120V
• System Power: 4.0 watts (for 7.2" length model)
• System Efficacy: 54 lumens per watt
• Lumens per Foot: ~430
• Power Factor: 0.94
• Dimming: ELV type, dimming range 5%-15% depending on dimmer
• Mounting Method: Wood screws
• Housing Color: Black
• On/Off Switch: Integrated
• Maximum Run Length: 70 feet
• Warranty: 5 years
• Suitable for Damp Locations

Features

• Integrated on/off switch for convenient control
• Remote phosphor lens for consistent light quality
• Jumper connection ports at each end for linking multiple units
• Compact slimline design with die-cast end caps
• Reliable integrated driver supporting consistent performance
• Compatible with low-voltage electronic dimmers
• Installation suitable for undercabinet and under-shelf applications
