TECH LIGHTING 700TTSORGS TT-SUPPORT OUT RIG WO/CONN SN Lighting Support System

The TECH LIGHTING 700TTSORGS TT-Support Outside Rigger without Connector is designed to support a Single-Circuit T~trak™ lighting system cantilevered 36 inches off a wall. This product is intended for indoor dry locations and is used by electrical distributors and lighting solutions providers to maintain structural integrity and alignment of wire and cable track lighting installations. It is field-cuttable to accommodate specific installation requirements.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part Number: 700TTSORGS
• Product Weight: 1.4 lbs
• UPC: 756460973643
• Application: Support for Single-Circuit T~trak™ system
• Installation Location: Indoor dry locations only
• Support Distance: Supports system 36" off wall
• Finish: Satin Nickel (SN)

Features

• Extends from the wall to support track lighting without connector
• Field-cuttable support rod for customized length
• Includes rigid standoffs recommended every four feet of T~trak™ run
• Supports cantilevered track lighting installations

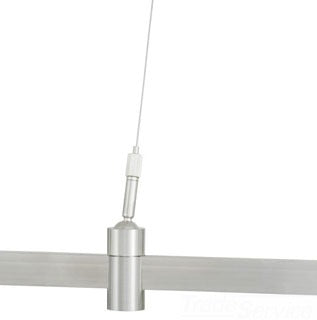

• Includes aircraft cable and support post with adjustable cable post angle for secure installation
• Easy installation with set screws and adjustable wire grip tab for cable management
• Compatible with Single-Circuit T~trak™ track lighting systems
