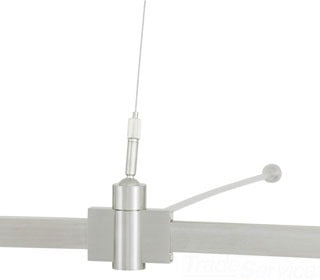

TECH LIGHTING 700TTSORGICS TT-SPPRT OUT RIG W/ISO/CON SN - Support Outside Rigger for T~TRAK Lighting Systems

The TECH LIGHTING 700TTSORGICS TT-SPPRT OUT RIG W/ISO/CON SN is a support outside rigger designed for use with Single-Circuit T~TRAK lighting systems. It is intended to cantilever the T~TRAK system up to 36 inches off a wall, providing structural support while maintaining electrical isolation between track sections. This component is suitable for indoor dry locations and is commonly used by electrical distributors and lighting solutions providers specializing in wire and cable management and switchgear installation.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700TTSORGICS
• Product Weight: 1.9 lbs
• UPC: 756460966157
• Application: Single-Circuit T~TRAK systems only
• Installation: Supports track every four feet of run
• Location: Indoor dry locations only
• Finish: Satin Nickel (as indicated by product images and catalog)

Features

• Includes an isolating connector to electrically separate joined Single-Circuit T~TRAK sections
• Field-cuttable support rod to customize length for precise installation
• Aircraft cable and support post system with adjustable cable post mounting angle at 45° for secure locking
• Simple installation with set screws and Allen wrench for secure fastening
• Supports cantilevered track runs up to 36" from the wall
• Can be converted to install in close proximity to isolating connector while maintaining support and electrical isolation
• ETL listed for safety compliance in indoor applications
