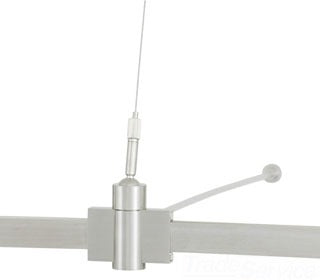

TECH LIGHTING 700TTSORGCCW TT-SPPRT OUT RIG W/CND/CON WH - Lighting Support Outside Rigger

The TECH LIGHTING 700TTSORGCCW is a support outside rigger designed for use with the Single-Circuit T~trak™ lighting system. It serves to cantilever and support the T~trak system up to 36 inches off a wall, providing a rigid mounting solution for track lighting runs. This component is suitable for indoor dry locations and is field-cuttable to accommodate specific installation dimensions. It integrates conductive connectors to maintain electrical continuity within the track system.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700TTSORGCCW
• Product Weight: 1.9 lbs
• Compatible System: Single-Circuit T~trak™
• Finish: White
• Application: Indoor dry locations only
• Support Extension: Up to 36 inches from wall
• Certification: ETL Listed for electrical safety

Features

• Includes conductive connector for power continuity between track sections
• Field-cuttable support rod for custom length adjustments
• Aircraft cable and support post installation with secure locking mechanism
• Mounts rigidly to wall to support track runs every four feet
• Supports track sections end to end with stable cantilevered support
• Installation requires standard tools including hacksaw and Allen wrenches (1/16" and 0.05")
• Plastic inserts used to ensure proper insulation and secure fit of track sections
• Designed for use by electrical distributors, lighting solutions providers, and switchgear suppliers specializing in wire and cable track systems
