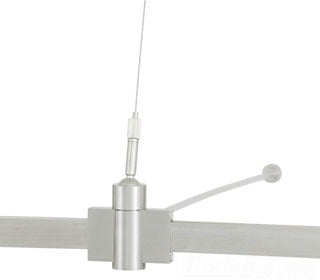

TECH LIGHTING 700TTSORGCCS TT-SPPRT OUT RIG W/CND/CON SN - Support Outside Rigger for T~trak Lighting Solutions

The TECH LIGHTING 700TTSORGCCS is a support outside rigger designed for use with the Single-Circuit T~trak™ lighting system. It extends from the wall to support and provide a conductive connection for T~trak track runs, enabling cantilevered installations up to 36 inches off the wall. This component is essential for maintaining structural integrity and electrical continuity in specialized lighting installations, making it suitable for electrical distributors and lighting solutions providers working with wire and cable and switchgear supply for commercial or residential projects.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part Number: 700TTSORGCCS
• Product Weight: 1.9 lbs
• UPC: 756460966133
• System Compatibility: Single-Circuit T~trak™ only
• Finish: Satin Nickel
• Application Location: Indoor dry locations only
• Installation: Use rigid standoffs every four feet of track run

Features

• Supports T~trak track runs cantilevered 36" off the wall
• Includes conductive connector for power feed integration
• Field-cuttable support rod for customized length adjustments
• Aircraft cable and support post installation with locking cable post at a minimum 45° angle for secure positioning
• Compatible with Single-Circuit T~trak sections featuring white insulator facing up
• Requires tightening of #6-32 and #4-40 set screws with provided Allen wrenches for secure mechanical and electrical connections
• Installation includes wall anchors and threaded washers for secure mounting
• Allows conversion to close proximity installation while maintaining support and electrical connection
