TECH LIGHTING 700TTP4CL48W TT-4IN PW FD W/ L CON48IN WH Power Feed Canopy

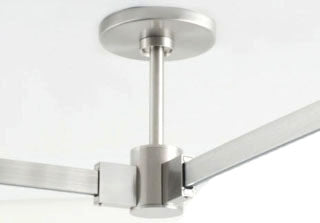

The TECH LIGHTING 700TTP4CL48W is a 4-inch round power feed canopy designed for indoor dry locations. It serves as a key component in single-circuit T~TRAK lighting systems, enabling power feed and track joining in an “L” configuration. This product is intended for use by electrical distributors and switchgear suppliers to facilitate efficient and secure power delivery in lighting solutions. It mounts to a standard 4-inch ceiling junction box with a round plaster ring and is suitable for wire and cable connections within lighting track systems.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700TTP4CL48W
• Product Weight: 1.5 lbs
• UPC: 756460938185
• Mounting: Standard 4" ceiling junction box with round plaster ring
• System Compatibility: Single-circuit T~TRAK
• Finish: White (WH)
• Length: 48 inches
• Configuration: Power feed canopy with “L” connector for joining track sections
• Location: Indoor dry locations only
• Patented: U.S. Patent 7,172,332

Features

• Allows power feed from ceiling junction box directly above the track
• Enables joining of track sections in an “L” configuration for flexible layout design
• Field-cuttable lengths longer than 2 inches for custom installation heights
• Includes decorative 4" canopy and threaded ring for secure mounting
• Compatible with standard electrical boxes including 4" square or octagon with round plaster ring
• Installation requires qualified electrician with clear wiring instructions
• Supports proper wire connections for hot, neutral, and ground conductors
