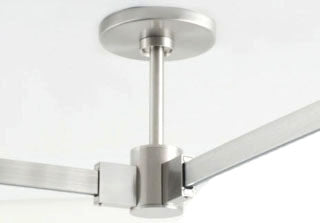

TECH LIGHTING 700TTP4CL48S TT 4 IN PWR FD CAN L 48 IN SN Power Feed Canopy

The TECH LIGHTING 700TTP4CL48S is a 4-inch round power feed canopy designed for indoor dry locations. It serves as a critical component in lighting solutions, allowing electrical distributors and switchgear suppliers to power single-circuit T~TRAK track lighting systems from a ceiling junction box. This product mounts to a standard 4-inch ceiling junction box with a round plaster ring and is suitable for use in wire and cable installations requiring a clean, professional power feed connection. The canopy is finished in satin nickel and includes an "L" connector to join sections of track in an "L" configuration, facilitating flexible track layouts.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700TTP4CL48S
• Product Weight: 1.5 lbs
• Power Feed Canopy Diameter: 4 inches
• Length: 48 inches (field-cuttable for custom drop length)
• Finish: Satin Nickel
• System Compatibility: Single-Circuit T~TRAK
• Mounting: Standard 4" ceiling junction box with round plaster ring or octagon electrical box
• Location: Indoor dry locations only
• Patent: U.S. PAT. 7,172,332

Features

• Includes an "L" connector for joining track sections in an "L" configuration
• Power feed rod length is adjustable and field-cuttable for precise installation height
• Mounting bracket with threaded ring secures decorative canopy for a clean finish
• Compatible with single-circuit T~TRAK sections, ensuring proper power connection via hub connector
• Installation requires a qualified electrician with clear wiring instructions for hot, neutral, and ground connections
• Designed to meet energy efficiency standards with options for current limiters (consult factory)
