TECH LIGHTING 700TTP4CL36W TT 4 IN PWR FD CAN L 36 IN WH Power Feed Canopy

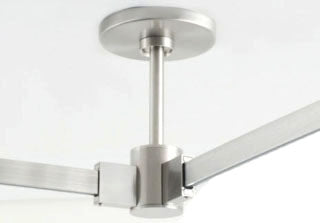

The TECH LIGHTING 700TTP4CL36W is a 4-inch round power feed canopy designed for use with the Single-Circuit T~TRAK lighting system. It serves as a power feed point, mounting to a standard 4-inch ceiling junction box with a round plaster ring. This product is suitable for indoor dry locations and is intended to facilitate electrical power distribution along track lighting runs, making it applicable for electrical distributors and lighting solutions providers.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part Number: 700TTP4CL36W
• Product Weight: 1.5 lbs
• UPC: 756460938178
• Power Feed Canopy Type: "L" Connector
• Length: 36 inches
• Finish: White
• Mounting: Fits standard 4" ceiling junction box with round plaster ring or octagon electrical box
• Suitable Location: Indoor dry locations only
• Certification: ETL Listed (ETL US)
• Patent: U.S. Patent 7,172,332

Features

• Mounts directly above Single-Circuit T~TRAK runs to provide power feed and join track sections in an "L" configuration
• Field-cuttable lengths longer than 2 inches for customized drop height
• Includes threaded ring and decorative canopy for secure installation and aesthetic finish
• Power feed rod with clamp and plastic bushing for secure wiring and adjustable height
• Installation requires qualified electrician with clear wiring instructions for ground, hot, and neutral connections
• Compatible with standard electrical boxes and designed for easy mounting with included hardware
• Designed to meet energy efficiency standards with selectable current limiter options (consult factory for limits)
