TECH LIGHTING 700TTP4CCC48S TT 4 IN PWR FD W/CON 48 IN SN Power Feed Canopy

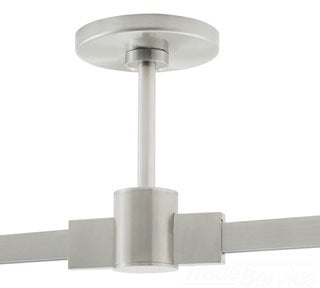

The TECH LIGHTING 700TTP4CCC48S is a 4-inch round power feed canopy with connector designed for use in indoor dry locations. It serves as a power feed point for the Tech Lighting T~TRAK single-circuit track lighting system, enabling electrical distributors and lighting solution providers to deliver power while joining track sections end to end. This component mounts to a standard 4-inch ceiling junction box with a round plaster ring and is suitable for wire and cable integration in switchgear supplier environments.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700TTP4CCC48S
• System: 700 T~TRAK Single-Circuit
• Type: Power Feed Canopy with Connector
• Length: 48 inches (field-cuttable for custom lengths)
• Finish: Satin Nickel
• Mounting: Standard 4" ceiling junction box with round plaster ring or octagon electrical box
• Weight: 1.5 lbs
• Location: Indoor dry locations only
• Certification: ETL Listed

Features

• Enables power feed to T~TRAK single-circuit track lighting systems while joining sections end to end
• Includes connector hub for secure track section connection
• Adjustable power feed rod length with field-cuttable option to match specified drop
• Mounting hardware includes threaded ring and decorative canopy for clean ceiling installation
• Requires installation by a qualified electrician with standard wiring connections (hot, neutral, ground)
• Patented design (U.S. Patent 7,172,332)
