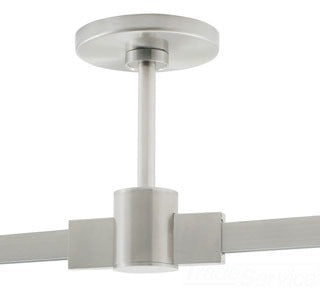

TECH LIGHTING 700TTP4CCC12S TT 4 IN PWR FD W/CON 12 IN SN Power Feed Canopy

The TECH LIGHTING 700TTP4CCC12S is a 4-inch round power feed canopy designed for indoor dry locations. It serves as a power feed and connector for single-circuit T~TRAK lighting track systems, allowing electrical distributors and lighting solutions providers to power and join track sections end to end. This component mounts to a standard 4-inch ceiling junction box with a round plaster ring and is suitable for use in wire and cable installations requiring secure power feed connections. It is a key accessory for switchgear suppliers managing T~TRAK lighting systems.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700TTP4CCC12S
• Product Weight: 1.5 lbs
• Mounting: Standard 4" ceiling junction box with round plaster ring or octagon electrical box
• Finish: Satin Nickel
• Length: 12 inches (field-cuttable for custom length)
• Type: Single-circuit T~TRAK with connector
• Suitable Location: Indoor dry locations only
• Patented: U.S. Patent 7,172,332
• Certification: ETL Listed

Features

• Provides power feed while joining sections of single-circuit T~TRAK track end to end
• Includes a decorative 4" round canopy and threaded ring for secure installation
• Adjustable length with field-cuttable power feed rod to match specified drop heights
• Easy installation with mounting bracket and #8-32 screws included
• Includes plastic bushing to protect wires when shortening power feed rod
• Compatible with standard electrical boxes and complies with local electrical codes
• Installation requires a qualified electrician; includes detailed installation instructions
