TECH LIGHTING 700TTP4CCC06S TT 4 IN PWR FD W/CON 06 IN SN Power Feed Canopy

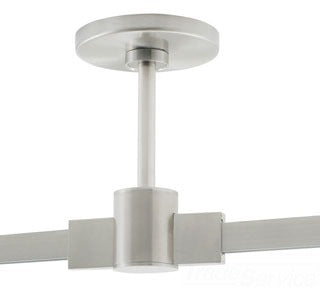

The Tech Lighting 700TTP4CCC06S is a 4-inch round power feed canopy with connector, designed for use with the Single-Circuit T~TRAK lighting system. It mounts to a standard 4-inch ceiling junction box with a round plaster ring and is intended for indoor dry locations. This power feed canopy enables electrical power feed while joining track sections end to end, providing a reliable connection point for track lighting systems. It is suitable for electrical distributors and lighting solution providers requiring secure and efficient wire and cable management in architectural lighting installations.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part Number: 700TTP4CCC06S
• Product Weight: 1.5 lbs
• Mounting: Standard 4" ceiling junction box with round plaster ring
• Compatibility: Single-Circuit T~TRAK system
• Length: 6 inches power feed rod
• Finish: Satin Nickel
• Application: Indoor, dry locations only
• Patented: U.S. Patent 7,172,332

Features

• Includes connector to join track sections end to end
• Field-cuttable power feed rod for custom length adjustments
• Mounting bracket and threaded ring secure decorative canopy in place
• Ground, hot (black), and neutral (white) wire connections per local electrical codes
• Suitable for use with a 4" square or octagon electrical box
• Installation requires qualified electrician with power shutoff prior to installation
• Plastic bushing included to protect wires inside power feed rod
