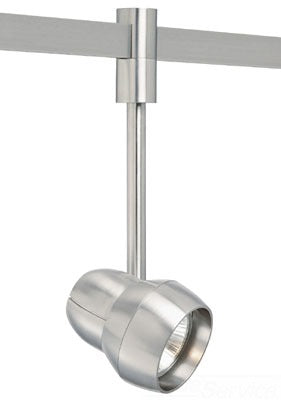

TECH LIGHTING 700TTOM30L06SS TT-OM PAR30L 06IN SATIN SN Lighting Fixture

The TECH LIGHTING 700TTOM30L06SS is a versatile track lighting fixture head designed for use with Tech Lighting Power Jack and T~trak systems. This fixture features a die-cast aluminum head with a satin nickel finish, providing robust construction and aesthetic appeal. It supports 120-volt incandescent PAR30 Long lamps with an E26 medium base, up to 75 watts (lamp not included). The head pivots vertically 180° and rotates horizontally 350°, allowing precise directional lighting control. It includes vertical and horizontal locking mechanisms for secure positioning and accommodates up to two lenses or louvers for enhanced light control. Suitable for indoor dry locations, this fixture is ideal for electrical distributors and lighting solutions providers specializing in wire and cable and switchgear supplier applications.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700TTOM30L06SS
• Product Weight: 1.0 lb
• Voltage: 120 Volt
• Lamp Type: Incandescent PAR30 Long
• Maximum Wattage: 75 Watts
• Lamp Base: E26 Medium Base
• Material: Die-cast Aluminum
• Finish: Satin Nickel
• Head Pivot: Vertical 180°
• Head Rotation: Horizontal 350°
• Dimensions (Length A): 6.3 in (160 mm)
• Compatible Systems: Tech Lighting Power Jack & T~trak
• Indoor Use: Dry Locations Only

Features

• Vertical and horizontal locking mechanisms for secure fixture positioning
• Decorative lens ring with options for frost or solid lens rings
• Holds up to two lenses or louvers (sold separately) for customizable light diffusion and control
• Patented design (U.S. Patent 7,172,332)
• Easy lamp installation with removable front ring
• Optional fixture locking in permanent vertical position using included Allen wrench and set screw
• Compatible with Halo, Juno, or Lightolier track systems (adapter required)
