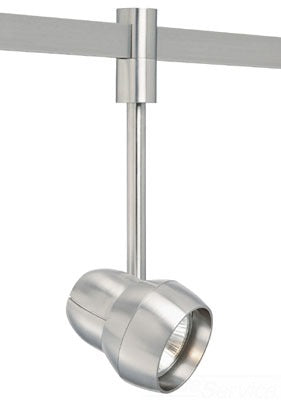

TECH LIGHTING 700TTOM2003SW TT-OM PAR20 03IN SOLID WHITE Lighting Solutions

The TECH LIGHTING 700TTOM2003SW is a versatile track lighting head designed for use with Tech Lighting Power Jack and T~trak™ systems. It features a die-cast aluminum construction with a solid white lens ring and is intended for indoor dry locations. This fixture accommodates a 120-volt incandescent PAR20 lamp with an E26 medium base, supporting up to 50 watts. Its design allows vertical pivoting of 180° and horizontal rotation of 350°, with locking mechanisms to secure the fixture in place. Suitable for electrical distributors and lighting solutions providers focusing on wire and cable and switchgear applications.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700TTOM2003SW
• Lamp Type: Incandescent PAR20
• Lamp Base: E26 medium base
• Maximum Wattage: 50 watts
• Voltage: 120 volts
• Material: Die-cast aluminum
• Lens Ring Finish: Solid White
• Weight: 1.0 lb
• Dimensions (Length A): 3.3 inches (84 mm)
• Vertical Pivot: 180°
• Horizontal Rotation: 350°
• Suitable Location: Indoor dry locations only
• Compatible Systems: Tech Lighting Power Jack & T~trak™

Features

• Vertical and horizontal locking mechanisms for secure positioning
• Decorative solid white lens ring
• Holds up to two lenses or louvers (sold separately) for customizable light control
• Patented design (U.S. PAT. 7,172,332)
• Easy installation and lamp replacement with removable front ring
• Optional fixture head locking with included Allen wrench for permanent vertical positioning
