TECH LIGHTING 700TTOM1603SS TT-OM PAR16 03IN Solid Satin Nickel Lighting Fixture

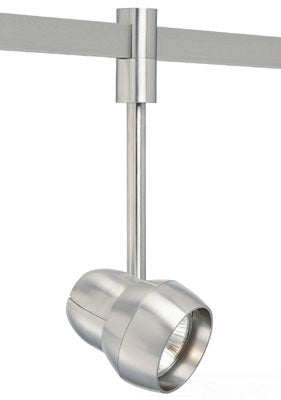

The TECH LIGHTING 700TTOM1603SS is a versatile lighting fixture designed for use with Tech Lighting Power Jack and T~trak track systems. It features a die-cast aluminum head that pivots vertically 180° and rotates horizontally 350°, allowing precise directional lighting control. This fixture is intended for indoor dry locations and supports 120-volt incandescent PAR16 lamps with a GU10 base, up to 50 watts. It is suitable for electrical distributors and lighting solutions providers seeking high-quality track lighting components.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700TTOM1603SS
• Product Weight: 1.0000 lb
• Voltage: 120 Volt
• Lamp Type: Incandescent PAR16
• Maximum Wattage: 50 Watts
• Base Type: GU10
• Material: Die-cast aluminum
• Finish: Satin Nickel (Solid Lens Ring)
• Dimensions (Length A): 3.3 inches (84 mm)
• Pivot Vertical Range: 180°
• Rotation Horizontal Range: 350°
• Indoor Use: Dry locations only
• Patent: U.S. PAT. 7,172,332

Features

• Vertical and horizontal locking mechanisms for secure positioning
• Decorative solid lens ring in satin nickel finish
• Compatible with Tech Lighting Power Jack and T~trak track systems
• Holds up to two lenses or louvers (sold separately) for customizable light control
• Easy installation with removable front ring for lamp and accessory changes
• Optional fixture head locking with set screw and Allen wrench for permanent positioning
