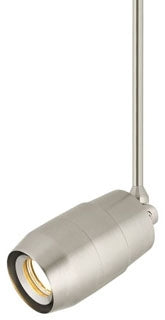

TECH LIGHTING 700TTENVLL5406W TT-ENVISN LED 35K 40 6IN WH – Envision LED Display Head

The TECH LIGHTING 700TTENVLL5406W Envision LED display head is a precision-engineered lighting solution ideal for commercial applications such as retail stores, libraries, and galleries. Designed for use with track lighting systems, this die cast aluminum LED head offers versatile beam control with a full 360° horizontal rotation and 90° vertical pivot. It features modular LED optics and a horizontal locking mechanism, ensuring precise light direction and ease of maintenance. The integrated 18-watt isolated power supply and dimmable digital logic controller optimize performance while minimizing visual impact on the track.

Specifications

• Power Consumption: 18 watts
• Output: 1074+ net lumens
• Efficacy: 47 net lumens per watt
• Color Temperature Options: 2700K, 3000K, 3500K
• Color Rendering Index (CRI): 86
• Beam Spread Options: 15°, 25°, 40°
• Center Beam Candle Power (CBCP): 15° – 5300, 25° – 4012, 40° – 2308
• LED Module Life: 50,000 hours to 70% lumen maintenance
• Weight: 3.79 lb (1.72 kg)
• Dimensions: Length 6 in (150 mm), Height 3.8 in (96 mm)
• Dimmable to 10%
• Compliance: No mercury, RoHS compliant
• Warranty: 5 years

Features

• Die cast aluminum body for effective thermal management
• Modular LED module and optics for easy field replacement
• Front air intake design directs airflow past heat sink fins to rear vents, maintaining fixture cooling
• Horizontal locking mechanism for secure positioning
• Integrated 18-watt isolated power supply within the head to reduce track visual impact
• Supports up to two PAR16/MR16 lenses or louvers (sold separately)
