TECH LIGHTING 700TTENVLL5106S TT-ENVISN LED 35K 15 6IN SN - Envision LED Head Lighting Solutions

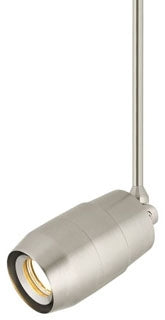

The TECH LIGHTING 700TTENVLL5106S Envision LED Head is a precision-engineered lighting solution designed for commercial applications such as retail stores, libraries, and galleries. This die cast aluminum LED display head offers a full 360° horizontal rotation and 90° vertical pivot, allowing precise directional lighting. Its modular LED module and optics simplify maintenance and replacement. The fixture integrates a dimmable digital logic controller operating in constant current mode with an 18-watt isolated power supply housed within the head to minimize visual impact on the track system. Ideal for electrical distributors and lighting solution providers focusing on wire and cable or switchgear supply, this product supports efficient, high-quality illumination with flexible beam control.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700TTENVLL5106S
• Product Weight: 3.79 lb (1.72 kg)
• Color Temperature: 3500K
• Beam Spread: 15°
• Length: 6 inches (150 mm)
• Finish: Satin Nickel
• Power Consumption: 18 watts
• Output: 1074+ net lumens
• Efficacy: 47 lumens/watt
• Color Rendering Index (CRI): 86
• Life: 50,000 hours to 70% lumen maintenance
• Dimmable to 10%
• Center Beam Candle Power (CBCP): 5300 (15° beam)
• Compliance: No mercury, RoHS compliant
• Warranty: 5 years

Features

• Die cast aluminum body for effective thermal management
• Front air intake design enables airflow past internal heat sink fins to rear vents, maintaining fixture coolness
• Horizontal locking mechanisms secure head position
• Field-replaceable proprietary 18-watt LED module
• Three interchangeable optics available: 15°, 25°, and 40°
• Holds up to two PAR16/MR16 lenses or louvers (sold separately)
• Dimmable digital logic controller in constant current mode
• Minimal visual impact on track due to integrated power supply within head
