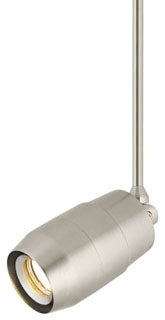

TECH LIGHTING 700TTENVLL3418W Envision LED Head Lighting Solutions

The TECH LIGHTING 700TTENVLL3418W Envision LED head is a precision-engineered lighting fixture designed for commercial applications such as retail stores, libraries, and galleries. Constructed from die-cast aluminum, this LED display head features a 360° horizontal rotation and 90° vertical pivot, enabling precise directional lighting. Its modular LED module and optics facilitate easy replacement, while the front air intake design ensures effective thermal management by allowing airflow past internal heat sink fins to rear exit vents. Ideal for electrical distributors and switchgear suppliers focusing on advanced lighting solutions, this fixture integrates a dimmable digital logic controller operating in constant current mode for consistent performance.

Specifications

• Product Weight: 3.79 lb (1.72 kg)
• Power Consumption: 18 watts
• Output: 1074+ net lumens
• Efficacy: 47 net lumens/watt
• Color Temperature Options: 2700K, 3000K, 3500K
• Color Rendering Index (CRI): 86
• Center Beam Candle Power (CBCP): 15° - 5300, 25° - 4012, 40° - 2308
• LED Module Life: 50,000 hours to 70% lumen maintenance
• Dimming: Dimmable to 10%
• Dimensions: Length 5.9" (150 mm), Height 3.8" (96 mm)
• Finish Options: Satin Nickel, White
• Compatible with Halo, Juno, and Lightolier 120V single-circuit track systems (via specific ordering codes)
• Compliance: No mercury, RoHS compliant
• Warranty: 5 years

Features

• Die-cast aluminum body for effective thermal management
• Horizontal locking mechanism for stable positioning
• Modular LED module and optics for easy field replacement
• Three interchangeable optics: 15°, 25°, and 40° beam spreads
• Holds up to two PAR16/MR16 lenses or louvers (sold separately)
• Isolated 18-watt power supply housed within the head to minimize visual impact on track
• Front air intake design enhances airflow and cooling efficiency
