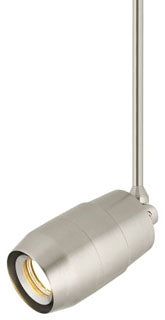

TECH LIGHTING 700TTENVLL3406W TT-ENVISN LED 30K 40 6IN WH – LED Track Lighting Head

The TECH LIGHTING 700TTENVLL3406W Envision LED head is a precision-engineered lighting solution designed for commercial applications such as retail stores, libraries, and galleries. This die cast aluminum LED fixture provides directional lighting with a full 360° horizontal rotation and 90° vertical pivot, allowing precise beam placement. Ideal for electrical distributors and lighting solutions providers, it integrates seamlessly into track lighting systems, offering modular optics and a compact, efficient design.

Specifications

• Power Consumption: 18 watts
• Output: 1074+ net lumens
• Efficacy: 47 net lumens per watt
• Color Temperature: 3000K
• Beam Spread Options: 15°, 25°, 40°
• CRI: 86
• Center Beam Candle Power: 40° – 2308 CBCP
• Dimensions: Length 6" (150 mm), Height 3.8" (96 mm)
• Weight: 3.79 lb (1.72 kg)
• LED Life: 50,000 hours to 70% lumen maintenance
• Dimmable to 10%
• Finish: White

Features

• Die cast aluminum body for thermal management
• Modular LED module and optics for ease of replacement
• Horizontal locking mechanisms for stable positioning
• Front air intake design for effective heat dissipation via internal heat sink fins and rear exit vents
• Field-replaceable proprietary 18 watt LED module
• Holds up to two PAR16/MR16 lenses or louvers (sold separately)
• Isolated 18 watt power supply integrated within the fixture head to minimize visual impact on track
• Compliant with RoHS, contains no mercury, and emits no UV rays
• 5-year warranty
