TECH LIGHTING 700TTENVLL2406W TT-ENVISN LED 27K 40 6IN WH - Envision LED Head Lighting Solutions

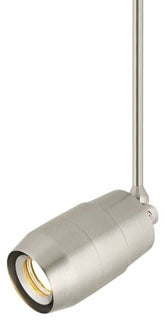

The TECH LIGHTING 700TTENVLL2406W Envision LED head is a precision-engineered lighting solution designed for commercial applications such as retail stores, libraries, and galleries. Constructed from die cast aluminum, this LED display head features a 360° horizontal rotation and 90° vertical pivot, allowing precise directional control of the light beam. The design incorporates a front air intake for effective thermal management, ensuring long fixture life and optimal performance. This product is suitable for electrical distributors and lighting solution providers seeking modular, high-performance LED track lighting components.

Specifications

• Product Weight: 3.79 lb
• Power Consumption: 18 watts
• Output: 1074+ net lumens
• Efficacy: 47 net lumens/watt
• Color Temperature: 2700K, 3000K, 3500K
• CRI: 86
• Center Beam Candle Power (CBCP): 15° - 5300, 25° - 4012, 40° - 2308
• LED Module Life: 50,000 hours to 70% lumen maintenance
• Dimmable to 10%
• Dimensions: Length 6" (150 mm), Height 3.8" (96 mm)
• Finish: White
• UPC: 884655307369

Features

• Die cast aluminum body for enhanced thermal management
• Front air intake design with internal heat sink fins and rear exit vents
• Horizontal locking mechanism for secure positioning
• Modular LED module and optics for easy field replacement
• Three interchangeable optics: 15°, 25°, and 40° beam spreads
• Holds up to two PAR16/MR16 lenses or louvers (sold separately)
• Isolated 18 watt power supply integrated within the head to minimize visual impact
• Dimmable digital logic controller operating in constant current mode
• No mercury and RoHS compliant
• 5-year warranty
