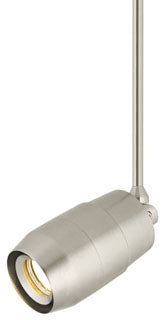

TECH LIGHTING 700TTENVLL2218W TT-ENVISN LED 27K 25 18IN WH - Envision LED Track Lighting Head

The TECH LIGHTING 700TTENVLL2218W Envision LED head is a precision-engineered lighting solution designed for commercial applications such as retail stores, libraries, and galleries. Constructed from die cast aluminum for optimal thermal management, this LED track lighting head offers a full 360° horizontal rotation and 90° vertical pivot, enabling precise directional lighting. The fixture integrates a dimmable, isolated 18-watt LED power supply within the head, minimizing visual impact on the track system. Its modular LED module and interchangeable optics provide flexibility and ease of maintenance, making it suitable for electrical distributors and lighting solutions providers seeking reliable, high-performance track lighting components.

Specifications

• Product Weight: 3.79 lb
• Power Consumption: 18 watts
• Output: 1074+ net lumens
• Efficacy: 47 net lumens/watt
• Color Temperature: 2700K
• CRI: 86
• Center Beam Candle Power (CBCP): 25° beam - 4012 CBCP
• Beam Spread Options: 15°, 25°, 40°
• Dimensions: Length 5.9" (150 mm), Height 3.8" (96 mm)
• LED Life: 50,000 hours to 70% lumen maintenance
• Dimmable to 10%
• Compliance: No mercury, RoHS compliant
• Warranty: 5-year

Features

• Die cast aluminum body for effective thermal management
• Horizontal locking mechanisms for secure positioning
• Modular LED module and optics for easy field replacement
• Front air intake design allowing airflow past internal heat sink fins to rear exit vents
• Isolated power supply integrated within the head to reduce visual impact
• Compatible with TT single-circuit T-TRAK systems
• Holds up to two PAR16/MR16 lenses or louvers (sold separately)
